HIGHLIGHTS |
APPLICATIONS |
|
·
High Power Deep Red (660nm) LED
Emitter ·
High Drive Current Up to 700mA ·
Low Thermal Resistance ·
RoHs Compliant Part |
·
Sun Light Viewable ·
Channel and Backlighting ·
Indoor and Outdoor Lighting ·
Horticultural Lighting |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power |
3 |
W |
|
DC Forward Current |
700 |
mA |
|
Peak Pulse Forward Current (1) |
1000 |
mA |
|
Operating Temperature |
-30
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Junction Temperature |
135 |
0C |
|
Lead Soldering Temperature |
2600C
for 5 Seconds Max. (1.6mm from Body) |
|
(1)
Pulse conditions of 1/10 duty and 0.1msec width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
DC Forward
Voltage |
VF |
IF
= 700mA |
2.0 |
2.6 |
V |
|
|
Luminous
Intensity |
IV |
IF
= 350mA |
20 |
|
40 |
lm |
|
Luminous
Intensity |
IV |
IF
= 700mA |
60 |
|
80 |
lm |
|
Viewing Angle |
2q1/2 |
IF
= 700mA |
60 |
Deg. |
||
|
Dominant
Wavelength |
lD |
IF
= 700mA |
660 |
nm |
||

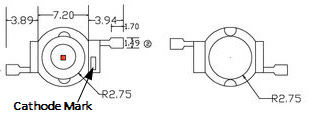

MECHANICAL
DIMENSIONS
|
LC LED Corporation |
