LCE-010RGB4P: 3W High Power RGB LED Emitter (120 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) High Power 1W Red, 1W Green & 1W Blue LED Emitter

(5)  Sun Light Viewable LED Lamp

(3) Excellent Color Mixing Characteristics

(6)  Wide Angle of 120 Degrees

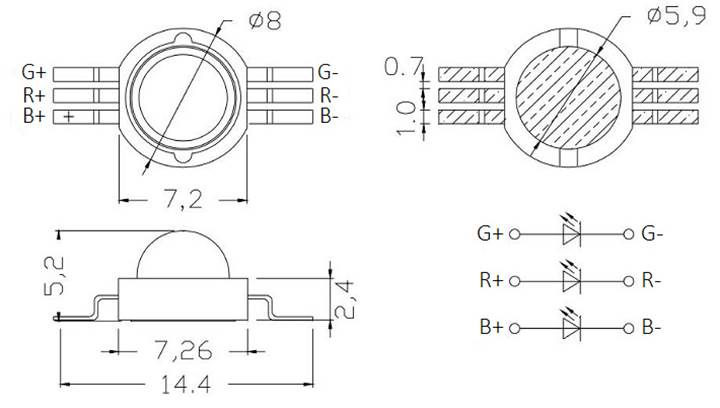

PACKAGE DIMENSIONS



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

350

mA

Peak Pulse Forward Current (1)

700

mA

Reverse Voltage

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

125

0C

Voltage Temperature Coefficient

-5

mV / 0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1)  Pulse conditions of 1/10 duty and 0.1msec width



Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 350mA

2.0

2.5

V

DC Forward Voltage (Green)

VF

IF = 350mA

3.0

3.5

V

DC Forward Voltage (Blue)

VF

IF = 350mA

3.0

3.5

V

Luminous Intensity (Red)

IV

IF = 350mA

40



70

lm

Luminous Intensity (Green)

IV

IF = 350mA

75



130

lm

Luminous Intensity (Blue)

IV

IF = 350mA

20



40

lm

Viewing Angle

2q1/2

IF = 350mA

120

Deg.

Dominant Wavelength (Red)

lD

IF = 350mA

620

625

nm

Dominant Wavelength (Green)

lD

IF = 350mA

520

525

nm

Dominant Wavelength (Blue)

lD

IF = 350mA

460

465

nm







Electrical Characteristics (Ta = 250C)



PARAMETER


DYNAMIC RESISTANCE (Ω)


VF TEMPERATURE
COEFFICIENT (mV / 0C)

THERMAL RESISTANCE (JUNCTION TO SOLDER POINT) (0C / W)

Red

1.0

-2

10

Green

1.0

-2

10

Blue

1.0

-2

10
