LCDD-4014YG21: Surface Mount Green 0.4 Inch (10.16mm) LED Display (Gray Background) Anode

PRODUCT DESCRIPTION



(1) SMD Display 0.4 Inch (10.16mm) Two Digit

(5)  Gray Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCDD-4014TW21

InGaN
White

5,500K

10

3.0

3.3

230 mcd

LCDD-4014TB21

InGaN
Blue

465

10

3.0

3.3

168 mcd

LCDD-4014TG21

InGaN
Green

525

10

3.0

3.3

275 mcd

LCDD-4014TUR21

AlInGaP
Red

630

10

1.8

2.3

135 mcd

LCDD-4014YG21

AlInGaP
Green

571

10

1.7

2.1

85 mcd

LCDD-4014UY21

AlInGaP
Yellow

590

10

1.7

2.1

90 mcd

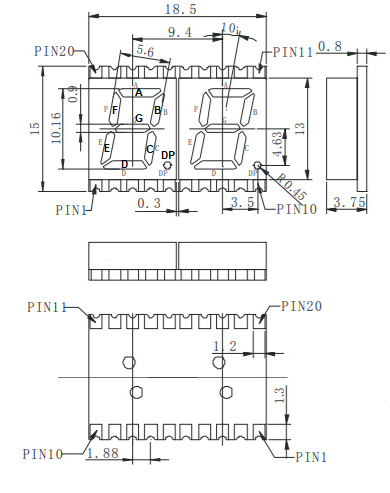

MECHNICAL DIMENSIONS



A close up of text on a white background Description automatically generated

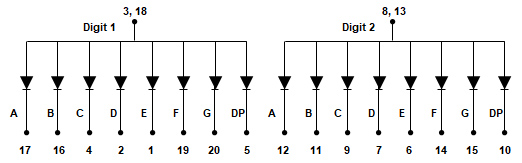

INTERNAL CIRCUIT LAYOUT



A close up of a device Description automatically generated
