LCDD-2012UY11: Surface Mount Yellow 0.2 Inch (5.08mm) LED Display (Black Background) Anode

PRODUCT DESCRIPTION



(1) SMD Display 0.2 Inch (5.08mm) Digit Height

(5)  Black Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCDD-2012TW11

InGaN
White

5,500K

10

3.0

3.3

180 mcd

LCDD-2012TB11

InGaN
Blue

465

10

3.0

3.3

135 mcd

LCDD-2012TG11

InGaN
Green

525

10

3.0

3.3

250 mcd

LCDD-2012TUR11

AlInGaP
Red

630

10

1.8

2.3

125 mcd

LCDD-2012YG11

AlInGaP
Green

571

10

1.7

2.1

75 mcd

LCDD-2012UY11

AlInGaP
Yellow

590

10

1.7

2.1

80 mcd

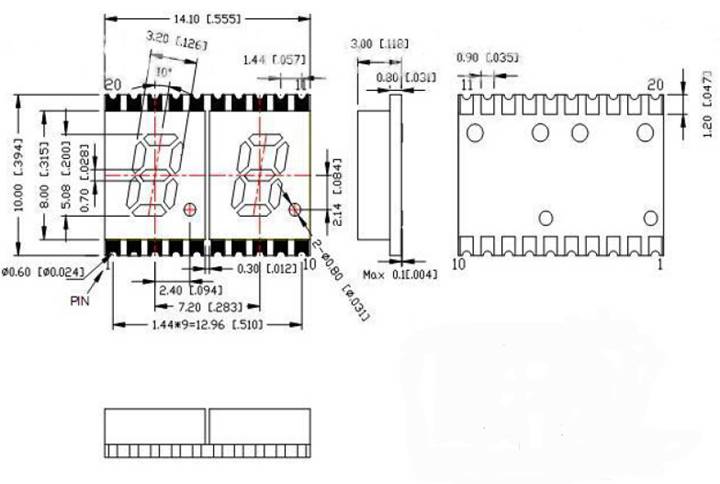

MECHNICAL DIMENSIONS



A close up of a map

Description automatically generated

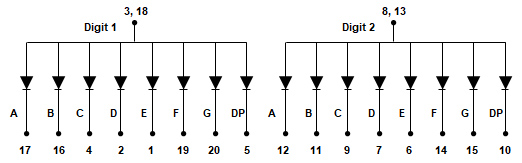

INTERNAL CIRCUIT LAYOUT



A picture containing drawing

Description automatically generated



A close up of a device

Description automatically generated

LC LED Corporation
