LCD-4032YG11: Green Double
Digit 0.40 Inch (10.16mm) LED Display
PRODUCT DESCRIPTION |
|
(1) Double Digit
0.40 Inch (10.16mm) Height |
(5) Black color background |
(2) Low current
operation |
(6) Common Anode |
(3) Excellent color
and font characteristics |
(7) RoHS Compliant Part |
(4) Colors: White, Red, Blue, Yellow, Green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
WHITE |
UNITS |
DC Forward
Current Per Segment |
20 |
mA |
Peak Current
Per Segment (1) |
25 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
25 |
mA |
Reverse Voltage
(2) |
3 |
V |
Operating
Temperature |
-25
to +85 |
0C |
Storage
Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
(2)
Reverse biasing of the dot matrix is not recommended, will cause damage
to the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCD-4032YG11 |
AlInGaP |
571nm |
10 |
1.7 |
2.3 |
43,000
ucd |

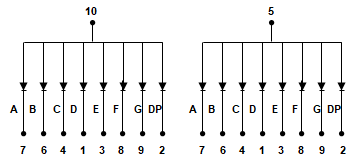

DEVICE
DIAGRAM
PIN
LAYOUT
LC LED Corporation |
