LCD-4032TUR1C: Red Double Digit 0.40 Inch (10.16mm) LED Display Cathode

PRODUCT DESCRIPTION
(1) Double Digit 0.40 Inch (10.16mm) Height	(5) Black color background
(2) Low current operation	(6) Common Cathode
(3) Excellent color and font characteristics	(7) RoHS Compliant Part
(4) Colors: White, Red, Blue, Yellow, Green

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	WHITE	UNITS
DC Forward Current Per Segment	20	mA
Peak Current Per Segment (1)	25	mA
Avg. Forward Current (Pulse Operation) Per Segment	25	mA
Reverse Voltage (2)	3	V
Operating Temperature	-25 to +85	^0C
Storage Temperature	-30 to +85	^0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Reverse biasing of the dot matrix is not recommended, will cause damage to the leds

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 10mA)
LCD-4032TUR1C	AlInGaP Red	625nm	10	1.8	2.2	45,000 ucd

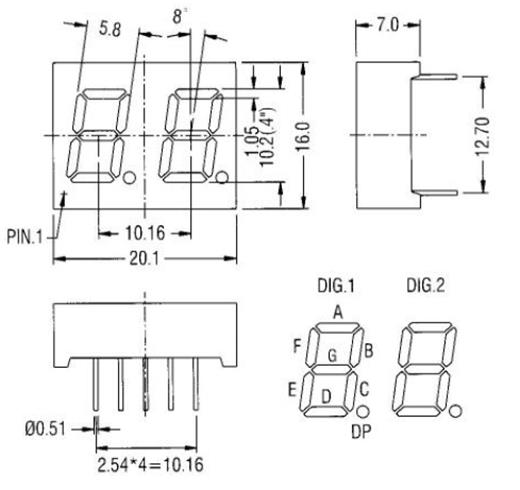

DEVICE DIAGRAM

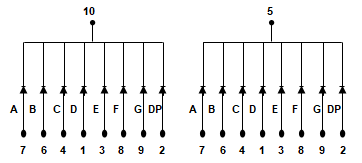

PIN LAYOUT

LC LED Corporation
