LCD-10022TUR2C: 7-Segment Red Double Digit 1.0 Inch (25.40mm) LED Cathode Display

PRODUCT DESCRIPTION



(1) 1.0 Inch Double (25.40mm) Digit Height

(5)  Gray color background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  Blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

UNITS

DC Forward Current Per Segment

30

30

25

30

mA

Peak Current Per Segment (1)

80

70

70

90

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

30

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-0 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA10)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCD-10022TUR2C

AlInGaP
Red

630

10

1.8

2.3

70,000 ucd

LCD-10022TB2C

InGaN
Blue

468

10

3.0

3.6

80,000 ucd

LCD-10022YG2C

AlInGaP
Green

568

10

1.9

2.3

65,000 ucd

LCD-10022UY2C

AlInGaP
Amber

590

10

1.8

2.3

60,000 ucd

LCD-10022TW2C

InGaN
White

5,500K

10

3.0

3.6

85,000 ucd

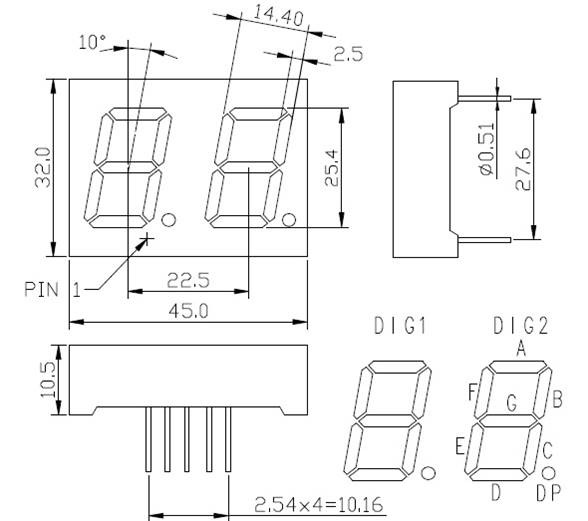

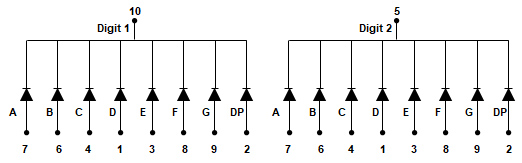

DEVICE DIAGRAM



A close up of a map

Description automatically generated





A picture containing drawing

Description automatically generated

LC LED Corporation
