LC52TW50DF:  LC LED 12VDC 2” 52mm White LED Light Clusters





A blue cylinder with many white tubes AI-generated content may be incorrect.

DESCRIPTION

·   2.0” LED Light Module

·   Wide Angle 60 Degree

·   Contains 48 High Intensity LEDs

·   High Luminous Intensity for Outdoor Signs and Modules

·   Use as Stand Alone, or as Light Modules for Outdoor and Indoor Signs. Water Proof. Sun Light Visible







PART NUMBER

COLOR / WAVELENGTH (nm)

TYP. / MAX.
OPERATING
VOLTAGE
(V)

TYPICAL
INTENSITY
PER LED
IV (mcd)

TYP. / MAX.
OPERATING
CURRENT
(mA) (1)  PER Device

TYPICAL
INTENSITY
PER Device
(mcd)

MAX.
PEAK
CURRENT
/ Cluster

VIEWING
ANGLE

TYPICAL
POWER
WATTS

LC52TUR50D

Super Red
InGaAlP (630nm)

7V / 9V

6,250 mcd

240 / 300

300,000

240mA

300

2.0W

LC52TUY50D

Super Amber
InGaAlP (590nm)

7V / 9V

5,000 mcd

240 / 300

240,000

240mA

300

2.0W

LC52TW50D

Super White
InGaN (5500K)

12V / 14V

9,375 mcd

240 / 300

450,000

240mA

300

3.0W

LC52TW50DF

Super White
InGaN (5500K)

12V / 14V

3,200 mcd

240 / 300

150,000

240mA

600

3.0W

LC52TB50D

Super Blue
InGaN (465nm)

12V / 14V

5,200 mcd

240 / 300

250,000

240mA

300

3.0W

LC52TG50D

Super Green
InGaN (525)

12V / 14V

7,300 mcd

240 / 300

350,000

240mA

300

3.0W

(1)     For long life, operating current of 120mA to 180mA is recommended; not to exceed recommended max. voltage, damage or lower operating life may result to the led cluster.

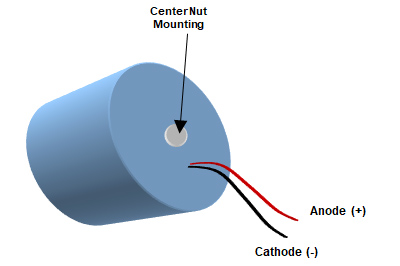

DEVICE DIAGRAM

INTERNAL LED CIRCUIT DIAGRAM

A diagram of a cylindrical object AI-generated content may be incorrect.

A circular black and white pattern AI-generated content may be incorrect.



A diagram of a circuit AI-generated content may be incorrect.

Male to Female Connector



LC LED Corporation
