LC52TUR50D:  52mm (2.0”) Red LED Cluster 9VDC

Decryption

·   2.0” LED Light Module

·   Contains 48 High Intensity LEDs

·   High Luminous Intensity

·   Use as stand-alone, or array of light modules for outdoor or indoor applications





ELECTRO-OPTICAL CHARACTERISTICS (Ta = 250C)

PART NUMBER

COLOR / WAVELENGTH (nm)

TYP. / MAX.
OPERATING
VOLTAGE
(V)

TYPICAL
INTENSITY
PER LED
IV (mcd)

TYP. / MAX.
OPERATING
CURRENT
(mA) (1)
 PER Device

TYPICAL
INTENSITY
PER Device
(mcd)

MAX.
PEAK
CURRENT
/ Cluster

VIEWING
ANGLE

TYPICAL
POWER
WATTS

LC52TUR50D

Super Red
InGaAlP (630nm)

7V / 9V

6,250 mcd

240 / 300

300,000

240mA

300

2.0W

LC52TUY50D

Super Amber
InGaAlP (590nm)

7V / 9V

5,000 mcd

240 / 300

240,000

240mA

300

2.0W

LC52TW50D

Super White
InGaN (5500K)

12V / 14V

9,375 mcd

240 / 300

450,000

240mA

300

3.0W

LC52TW50DF

Super White
InGaN (5500K)

12V / 14V

3,200 mcd

240 / 300

150,000

240mA

600

3.0W

LC52TB50D

Super Blue
InGaN (465nm)

12V / 14V

5,200 mcd

240 / 300

250,000

240mA

300

3.0W

LC52TG50D

Super Green
InGaN (525)

12V / 14V

7,300 mcd

240 / 300

350,000

240mA

300

3.0W

(1)     For long life, operating current of 120mA to 180mA is recommended; not to exceed recommended max. voltage, damage or
lower operating life may result to the led cluster.





ABSOLUTE MAXIMUM RATING (Ta = 250C)

PARAMETER

RED / AMBER

BLUE / GREEN

WHITE

UNITS

Power Dissipation

2.0

3.0

3.0

W

Peak Forward Current per LED

100 (1)

100  (1)

100  (1)

mA

DC Current per LED

30 (2)

30  (2)

20  (2)

mA

Average Current (Pulsing) per LED

30  (2)

30  (2)

20  (2)

mA

Reverse Voltage per Branch

5

5

5

V

Operating Temperature

-25 to +70

0C

Storage Temperature

-30 to +80

0C

(1)  Pulse conditions of 1/10 duty and 10msec width max.,

(2)  For long life, external resistor recommended, DC current of 10mA to 20mA is recommended



INTERNAL LED CIRCUIT DIAGRAM

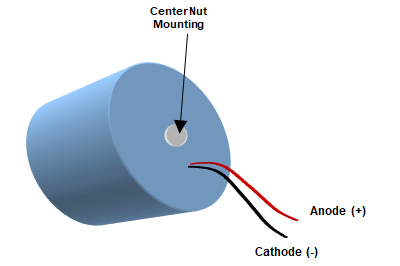

DEVICE DIAGRAM







Male to Female Connector
