LC26TUY8D:  26mm (0.75”) Amber LED Cluster 9VDC

     Stand-alone light source or as modules of led light clusters

     Applications includes but not limited to outdoor signage, traffic light, displays….

     Weather Resistance design for outdoor use

     Unique hood shape exterior allows for operational use during rain

     Water proof epoxy filled exterior surrounds the led lamps, includes O’Ring

     Comes with Male and Female PIN connectors





ELECTRO-OPTICAL CHARACTERISTICS (Ta = 250C)

Part Number


Dice Material
(Color)

Lamp
Qty.

Vf (V)
Typ./
Max.

IF (mA)
IR (
mA)
VR (V)

Peak
Wavelength
(nm)

Iv (mcd)
Typ.

Viewing
Angle



Internal
Circuit

LC26TW8D

InGaN
White

8

12V /
13V

IF = 40
IR = 100
VR = 10

5500K

72,000 mcd

30





LC26TUR8D

AlInGaP
Red

8

7.2V /
9V

IF = 40
IR = 100
VR = 10

630nm

40,000 mcd

30

LC26TUY8D

AlInGaP
Amber

8

7.2V /
9V

IF = 40
IR = 100
VR = 10

590nm

38,000 mcd

30

LC26TB8D

InGaN
Blue

8

12V /
13V

IF = 40
IR = 100
VR = 10

465nm

40,000 mcd

30

LC26TG8D

InGaN
Green

8

12V /
13V

IF = 40
IR = 100
VR = 10

525nm

64,000 mcd

30





ABSOLUTE MAXIMUM RATING (Ta = 250C)

PARAMETER

RED / AMBER

BLUE / GREEN

WHITE

UNITS

Power Dissipation

0.38

0.48

0.48

W

Peak Forward Current per LED

100 (1)

100  (1)

100  (1)

mA

DC Current per LED

30 (2)

30  (2)

20  (2)

mA

Average Current (Pulsing) per LED

30  (2)

30  (2)

20  (2)

mA

Reverse Voltage per Branch

5

5

5

V

Operating Temperature

-25 to +70

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty and 10msec width max.,

(2)  For long life, DC current of 10mA to 20mA is recommended

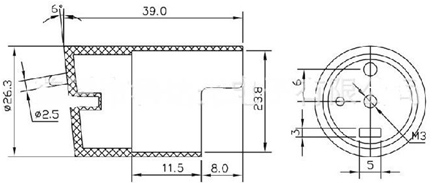

DEVICE DRAWING





                                    SIDE VIEW                                                       BACK VIEW

26mm cluster



(1) Medium size nut mounting located in back of cluster for easy installation, M3 size round



Male to Female Connector
