LC2057TUR32A:  2.09” (53mm) 5x7 Red Dot Matrix on Red Background

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.09 Inch (53mm)

(5)  Red color background

(2) Low current operation

(6)  Common Anode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Color:  Red







Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

125

mW

Peak Pulse Forward Current (1)

100

mA

DC Forward Current

30

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Solder Temperature of 1/16” Below Seating Plane for 5 Seconds at 2600C









Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage per Dot

VF

IF = 20mA

1.7



2.4

V

Reverse Current per Dot

IR

VR = 5V





10

mA

Dominant Wavelength

lD

IF = 20mA



630



nm

Luminous Intensity

IV

IF = 20mA



45



mcd

Luminous Intensity Matching Ratio

Iv-m

IF = 20mA

2:1







PCB PIN CONNECTON

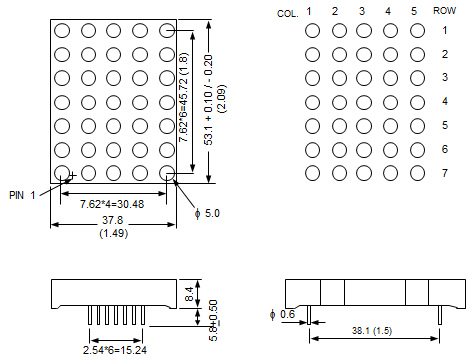

DEVICE DIAGRAM
