LC2057AURYG2C:  2.09” (53mm) 5x7 Bicolor LED Dot Matrix

PRODUCT DESCRIPTION



(1) Dot Matrix Height 2.09 Inch (53mm)

(5)  Gray color background

(2) Low current operation

(6)  Common Cathode Row

(3) Excellent color contrast and uniformity

(7)  RoHs Compliant Part

(4) Bicolor Red & Green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

GREEN

UNITS

Power Dissipation

110

90

mW

Peak Pulse Forward Current (1)

100

80

mA

DC Forward Current

30

25

mA

Reverse Voltage (2)

5

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)


MAX.
REVERSE
CURRENT (
mA)




VF (V)
MIN.




VF (V)
MAX.



LUMINOUS INTENSITY
(IF = 10mA)

LC2057AURYG2C

AlGaAs
Red

660

10

1.7

2.4

26,000 ucd

GaP
Green

570

10

1.8

2.6

18,000 ucd

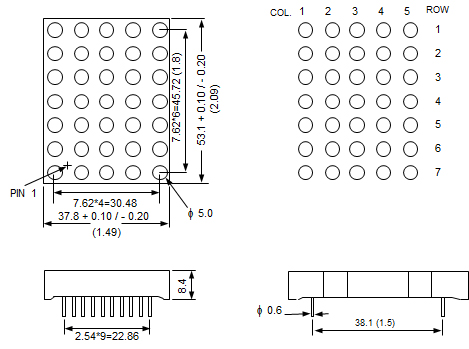

PCB PIN CONNECTON







DEVICE DIAGRAM
