PRODUCT DESCRIPTION |
|
(1) Dot Matrix
Height 0.70 Inch (17.8mm) |
(5) Black color background |
(2) Low current
operation |
(6) Common Anode Row |
(3) Excellent color
contrast and uniformity |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
WHITE |
BLUE |
UNITS |
Power Dissipation |
40 |
40 |
40 |
48 |
45 |
mW |
Peak Pulse
Forward Current (1) |
100 |
100 |
100 |
30 |
30 |
mA |
DC Forward Current |
30 |
30 |
30 |
20 |
20 |
mA |
Reverse
Voltage (2) |
5 |
5 |
5 |
5 |
5 |
V |
Operating
Temperature (3) |
-40
to +85 |
0C |
||||
Storage
Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
(2) Reverse biasing of the dot matrix is not
recommended, will cause damage to the leds
(3) 260C for 5 seconds max., solder temperature
1/16” below seating plane
Electro-optical
Characteristics (Ta = 250C)
|
|
|
|
|
|
|
LC0757TUR1A |
InGaAlP |
630 |
10 |
1.8 |
2.4 |
95,000
ucd |
LC0757UY1A |
InGaAlP |
590 |
10 |
1.7 |
2.4 |
90,000
ucd |
LC0757UYG1A |
InGaAlP |
571 |
10 |
1.7 |
2.4 |
68,000
ucd |
LC0771TB1A |
InGaN |
465 |
10 |
3.0 |
3.8 |
95,000
ucd |
LC0771TW1A |
InGaN |
5,500K |
10 |
3.0 |
3.8 |
118,000
ucd |

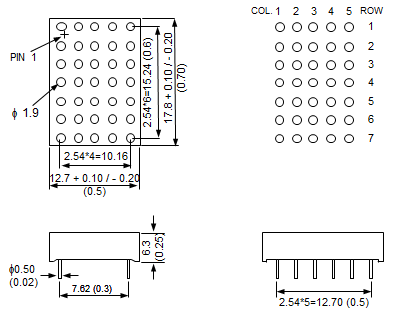

PCB PIN CONNECTON
DEVICE
DIAGRAM
