LC-LED-500UV4D-410P: 5mm UV 410nm LED (30 Degree) Emitter

HIGHLIGHTS

APPLICATIONS

        High Power UV-A LED

        Wide Range of Wavelengths (365nm to 430nm)

        High Power Dome Package

        Low Thermal Resistance

        RoHS Compliant Part

        Purification and Sterilization

        Curing for Ink, Adhesive and Coating

        Inspection and Detection

        Medical and Industrial Instrumentation

        Black Light





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Peak Pulse Forward Current

30

mA

Avg. Forward Current (Pulse Operation)

20

mA

Junction Temperature

100

0C

Operating Temperature

-25 to +85

0C

Storage Temperature

-40 to +100

0C





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Peak Wavelength

lD

IF = 20mA

410

420



Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Radiant Power

IE

IF = 20mA

37



mW

Radiant Intensity

IV

IF = 20mA



128



mW/Sr

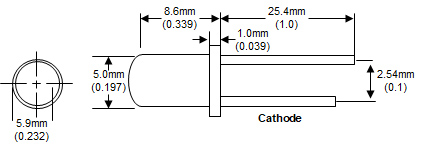

DEVICE DRAWING



LC LED Corporation
