LC LED-SLT-775RGBD: 3528 RGB SMD LED
LC LED 3.5mm x

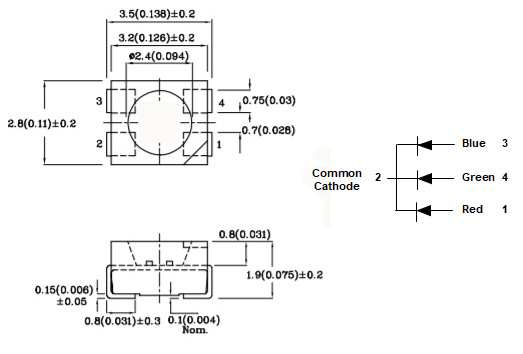

2.8mm RGB SMD LED (120 Degree) Common Cathode
|
|
|
|
(1)
RoHS REACH Compliant Part |
(4)
Wide Angle 120 Degree Viewability |
|
(2)
Compact 3528 RGB LED Configuration |
(5)
Full Spectrum Color Mixing |
|
(3)
Low Power Consumption |
(6)
Common Cathode |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
RED |
GREEN |
BLUE |
UNITS |
|
DC Forward Current |
30 |
30 |
30 |
mA |
|
Peak Pulse Forward Current (1) |
125 |
125 |
125 |
mA |
|
Reverse Voltage (IR
= 100mA) |
5 |
5 |
5 |
VR |
|
Operating Temperature |
-40
to +85 |
0C |
||
|
Storage Temperature |
-40
to 100 |
0C |
||
(1) Pulse Conditions of
1/8 duty cycle and 1.0msec pulse width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage |
VF (Red) |
IF
= 20mA |
1.7 |
|
2.3 |
V |
|
Forward
Voltage |
VF (Green) |
IF
= 20mA |
2.8 |
3.4 |
|
|
|
Forward
Voltage |
VF (Blue) |
IF
= 20mA |
2.8 |
3.4 |
V |
|
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
|
625 |
|
nm |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
|
525 |
|
nm |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 20mA |
|
465 |
|
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous
Intensity |
IV
(Red) |
IF
= 20mA |
800 |
|
1,600 |
mcd |
|
Luminous
Intensity |
IV
(Green) |
IF
= 20mA |
1,500 |
|
3,000 |
mcd |
|
Luminous
Intensity |
IV
(Blue) |
IF
= 20mA |
500 |
|
900 |
mcd |
|
LC LED Corporation |
