LC LED-N500TRY2D-12V: 5mm 12V Bicolor Red & Yellow Lamp



LC LED 12V 5mm Red and Yellow LED Milky Len (75 Degree)

PRODUCT DESCRIPTION



(1)  Design for 12VDC Operation

(4)  High Intensity LED Die Suitable for Outdoor Uses

(2)  No External Wiring or Resistor

(5)  Max. Current Load of 20mA (12VDC)

(3)  Incorporates Built-In Internal Resistor Chip

(6)  RoHS Compliant Part





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Max. DC Forward Voltage

12

V

DC Forward Current

20

mA

Avg. Forward Current

25

mA

Operating Temperature

-25 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 20mA

8

12

13

V

Forward Voltage (Yellow)

VF

IF = 20mA

8

12

13

V

Dominant Wavelength (Red)

lD

IF = 20mA

620



630

nm

Dominant Wavelength (Yellow)

lD

IF = 20mA

589



592

nm

Viewing Angle

2q1/2

IF = 20mA



75



Deg.

Luminous Intensity (Red)

IV

IF = 20mA

1,000



3,000

mcd

Luminous Intensity (Yellow)

IV

IF = 20mA

1,000



3,000

mcd

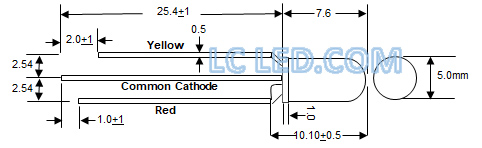

DEVICE DRAWING

Diagram, schematic

Description automatically generated
