LC LED-N500TGR4D: 5mm Bicolor
Green & Red LED
LC LED T1 ¾ 5mm Green and Red LED Lamp Clear (30 Degree)
Common Cathode
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS and REACH Compliant |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) 5mm 3 PIN
Common Cathode Configuration |
(5) Sun Light Viewable
LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged reliable
design for indoor outdoor applications |
DESIGN
BENEFITS
► High-Intensity Axial
Output:
The 30 degree viewing angle
concentrates luminous flux providing superior visibility for long-distance
observation or high-ambient light environments.
► Logic-Level
Compatibility:
Common Cathode architecture is optimized for sourcing drivers, making it
directly compatible with standard CMOS/TTL outputs and microcontroller GPIO
pins.
► Reduced Footprint: Consolidates two color
indicators into a single 5mm aperture, reducing PCB space
► Advanced Material
Properties:
Utilizes InGaN and AlInGaP technologies for high performance and reliability.
Minimal color shift over temperature
PRODUCT
APPLICATION
► Control Panels: High-visibility
"Go/No-Go" status for industrial machinery
► Light Pipes: Optimized for coupling
into rigid or flexible light guides
► Networking Hardware: Port activity and
system health indicators
► Consumer Electronics: Dual-state power
management and charging cycles
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) 1/10 Duty Cycle and 0.10msec pulse width, for
long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage
(Green) |
VF |
IF
= 20mA |
3.0 |
|
3.5 |
V |
|
Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.7 |
|
2.3 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
535 |
nm |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
624 |
|
635 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
4,800 |
|
8,200 |
mcd |
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
4,000 |
|
6,500 |
mcd |

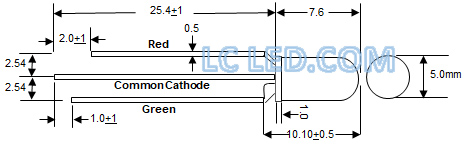

DEVICE DRAWING
|
