LC LED-N300TGLR2K: 3mm Bicolor
Green & Red LED Common Anode
LC LED T1 3mm Green and Red Milky Diffused LED (Common
Anode) 75 Degree
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS and REACH
Compliant |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) 3mm 3 PIN
Common Anode Configuration |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged reliable
design for indoor outdoor applications |
|
DESIGN
BENEFITS |
|
► Optimized Off-Axis
Visibility: The
75 degree viewing angle ensures that the light
source is viewable from extreme side angles. A critical design requirement
for large-scale panels and instrumentations where operators are not always
positioned directly in front ► Sinking-Driver
Compatibility:
The Common Anode (+) configuration is the preferred choice for use with
sinking drivers, open-collector NPN transistors, or dedicated LED driver ICs
that pull to ground to activate ► Color Blending
Capabilities: Because
both chips share a common anode, pulse-width modulation (PWM) can be applied to
the individual cathodes to create a spectrum of intermediate colors (e.g.,
Yellow, Amber, Orange) for multi-state signaling ► Advanced Material
Properties:
Utilizes InGaN and AlInGaP
technologies for high performance and reliability |
|
PRODUCT
APPLICATION |
|
► Industrial Products: Panel and
instrumentation displays ► Consumer Electronics: Status indicators
for electronic devices ► Power Electronics: Polarity indicators
and battery charging status (Red=Charging, Green=Full) |
|
Absolute Maximum
Rating (Ta = 250C) |
||
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1) 1/10 Duty Cycle and 0.1msec max. pulse
width and for long operating life recommended max. of 20mA
|
Electro-optical
Characteristics (Ta = 250C) |
||||||
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Green) |
VF |
IF
= 20mA |
3.0 |
|
3.3 |
V |
|
Forward
Voltage (Red) |
VF |
IF
= 20mA |
1.8 |
|
2.1 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
535 |
nm |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
624 |
|
635 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
75 |
|
Deg. |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
|
5,500 |
mcd |
|
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
|
3,000 |
mcd |
|

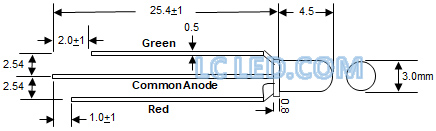

DEVICE DRAWING
|
