Built in I.C.
·
Flash Frequency of 1.5 Hz, Water Clear
Len
·
Low Power Consumption
·
RoHS Compliant

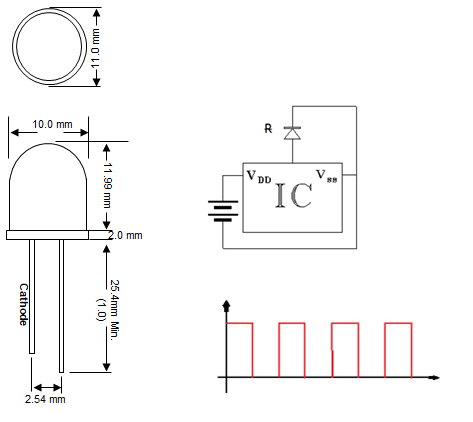

DEVICE
DRAWING
Absolute
Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
25 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current (Pulse Operation) |
25 |
mA |
|
Reverse Voltage |
5 |
V |
|
Operating Temperature |
-30
to +85 |
0C |
|
Storage Temperature |
-30
to +85 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse conditions of 1/10 duty and 0.10msec
width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Operating Voltage |
VF |
IF
= 20mA |
3.0 |
|
4.0 |
V |
|
Operating Current |
IF |
VSS
= 1.2V |
|
20 |
|
mA |
|
Dominant Wavelength |
lD |
IF
= 20mA |
6000 |
K |
||
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous Intensity |
IV |
IF
= 20mA |
6,500 |
mcd |
||
|
Power |
Pout |
VDD
= 4.5V |
|
87.5 |
|
mW |
|
Flash Frequency |
F |
|
|
1.5 |
|
Hz |
|
LC LED Corporation |
