B500TW2D:  Diffused 5mm Blinking White LED Lamp



·        Built in I.C.

·        Flash Frequency of 1.5 Hz, Water Clear Len

·        Low Power Consumption

·        RoHS Compliant

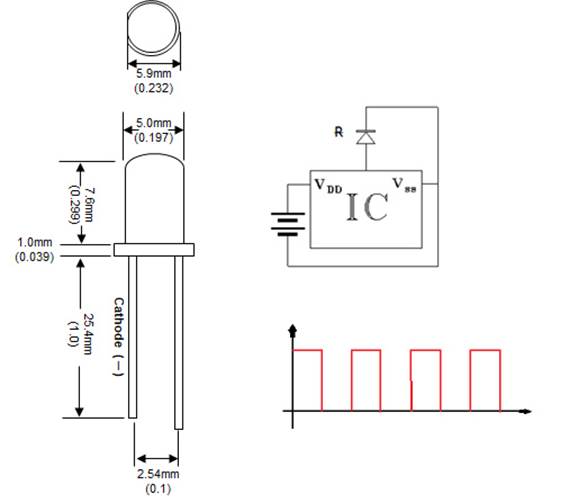

DEVICE DRAWING





A diagram of a transistor

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

25

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current (Pulse Operation)

25

mA

Reverse Voltage

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty and 0.10msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Operating Voltage

VF

IF = 20mA

3.0



3.8

V

Operating Current

IF

VSS = 1.2V



20



mA

Dominant Wavelength

lD

IF = 20mA

6000

K

Viewing Angle

2q1/2

IF = 20mA



75



Deg.

Luminous Intensity

IV

IF = 20mA

5,000

mcd

Power

Pout

VDD = 4.5V



87.5



mW

Flash Frequency

F





1.5



Hz



LC LED Corporation
