500UV4D
5mm Super UV LED (30 Degree) Emitter
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs
Compliant Part |
|
|
(2) High
Intensity UV LED Emitter |
|
|
(3) Moisture
& UV Resistance Epoxy |
|
|
(4) Bin Sorted By
Color, Intensity & Vf |
|
Absolute Maximum
Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current |
120 |
mA |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-30
to +80 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF
= 20mA |
3.0 |
3.4 |
4.5 |
V |
|
Reverse Voltage |
VR |
IR
= 10mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF
= 20mA |
|
395 |
415 |
|
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous Intensity |
IV |
IF
= 20mA |
|
1,200 |
|
mcd |

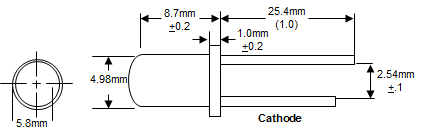

DEVICE
DRAWING
|
LC LED Corporation |
