LC LED UT-695RGB4D: 0605 RGB SMD LED Cathode

HIGHLIGHTS

APPLICATIONS

·        1.6mm x 1.5mm RGB Common Cathode

·        Low Power Consumption

·        Design for white color mixing

·        Long Operating Life

·        RoHs Compliant Part

·        Backlighting

·        Wearables and Portable Devices

·        Status Indicator

·        Medical and Industrial Instrumentation





DEVICE DIMENSIONS

A close up of a map

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

GREEN

BLUE

UNITS

DC Forward Current

25

25

25

mA

Peak Pulse Forward Current (1)

90

100

100

mA

Reverse Voltage (IR = 10mA)

5

5

5

VR

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Soldering Recommendation

Reflow soldering: 260°C For 5 Seconds

Hand soldering: 300°C For 3 Seconds

(1)  Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 20mA

1.8

2.5

V

DC Forward Voltage (Green)

VF

IF = 20mA

2.8

3.5

V

DC Forward Voltage (Blue)

VF

IF = 20mA

2.8

3.5

V

Luminous Intensity (Red)

IV

IF = 20mA

150



300

mcd

Luminous Intensity (Green)

IV

IF = 20mA

400



600

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

150



250

mcd

Viewing Angle

2q1/2

IF = 20mA

120

Deg.

Dominant Wavelength (Red)

lD

IF = 20mA

620

630

nm

Dominant Wavelength (Green)

lD

IF = 20mA

520

530

nm

Dominant Wavelength (Blue)

lD

IF = 20mA

460

470

nm

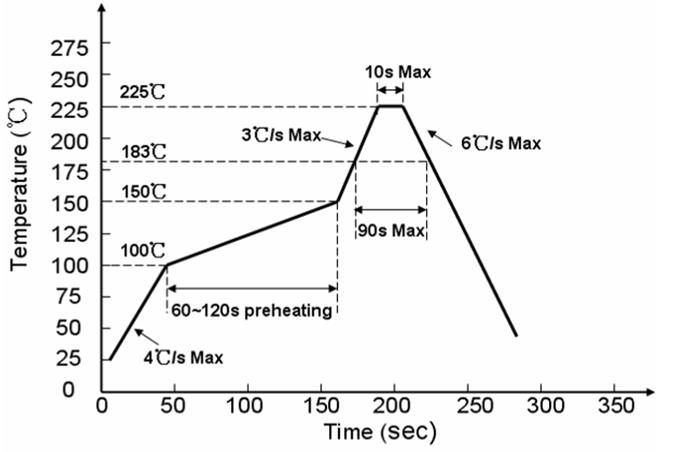

Suggest IR Reflow for Lead Solder



A close up of a map

Description automatically generated



Suggest IR Reflow for Pb Free Solder



A close up of a map

Description automatically generated

(1)  Recommended Soldering Temperature 245+50C. Maximum Soldering Temperature of 2600C





Recommended PCB Solder Pad

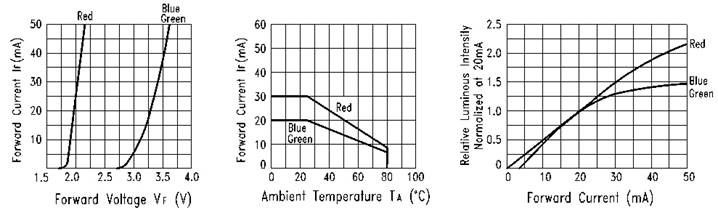

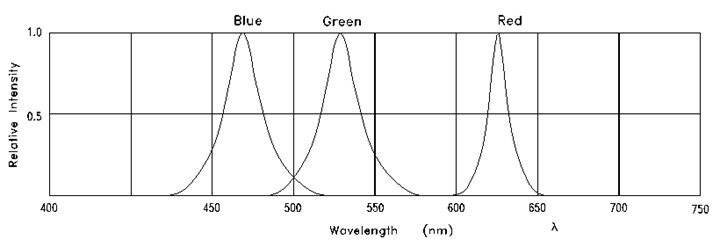

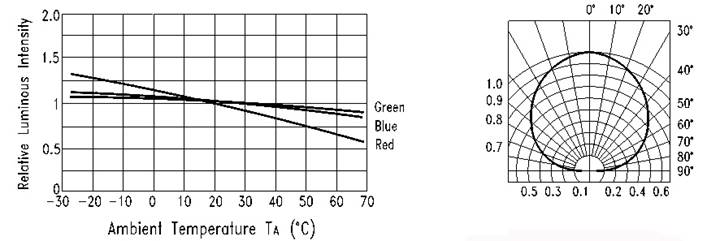

Electro-Optical Curve Characteristics





A screenshot of a cell phone

Description automatically generated



A close up of a map

Description automatically generated

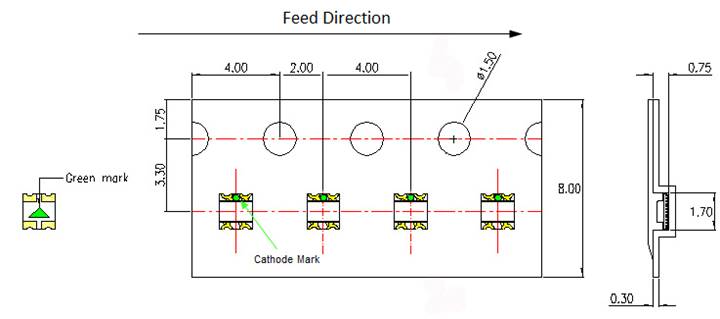

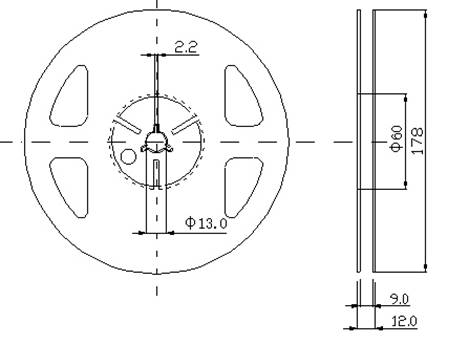

Tape and Reel Package Dimensions







A close up of a map

Description automatically generated


LC LED Corporation
