UT-692YQ: Super Yellow 0603 Chip SMD LED (1.6mm x 0.8mm)
|
PRODUCT DESCRIPTION |
|
|

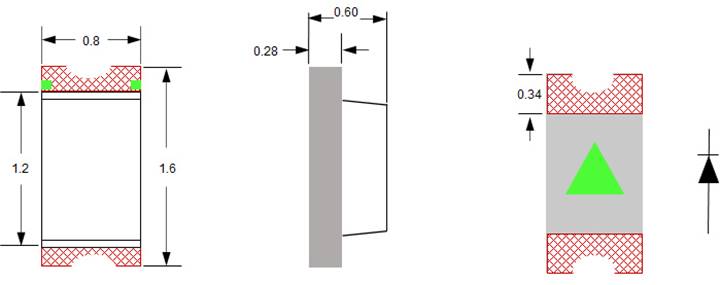

(1) 1.6mm x 0.8mm Footprint |
(5) Bin Sorted By Color, Intensity & Vf |
|
(2) RoHs Compliant Part |
(6) Packaging:
4,000 per Reel |
|
(3) SMD Assembly or Manual Soldering |
(7) Ideal for All Backlighting Applications |
|
(4) Moisture Sensitive Component |
|
Electro-optical
Characteristics (Ta = 250C)
|
|
|
Viewing |
lD |
Luminous Intensity |
Vf |
|||
|
P/N |
LED Color |
Angle |
Typ (nm) |
Mi.n |
Typ. |
Max. |
Typ. (V) |
Max (V) |
|
UT-692UR |
Super Red |
|
660 |
40 |
60 |
– |
1.7 |
2.4 |
|
UT-692YQ |
Super
Yellow |
592 |
40 |
80 |
– |
1.7 |
2.1 |
|
|
UT-692SQ |
Super |
605 |
40 |
80 |
– |
1.7 |
2.3 |
|
|
UT-692YQ |
Lime
Green |
578 |
40 |
80 |
– |
1.7 |
2.3 |
|
Absolute Maximum
Rating (Ta = 250C)
|
Parameter |
Maximum Rating |
Units |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Current (1) |
100 |
mA |
|
Power Dissipation |
100 |
mW |
|
Reverse Voltage (IR = 100uA) |
5 |
V |
|
Operating Temperature |
-30 to
+85 |
0C |
|
Storage Temperature |
-30 to
+85 |
0C |
(1) Pulse Conditions of 1/10 duty
and 0.1msec widths
|
LC LED Corporation |
