UT-692YG: Lime Green 0603 Chip SMD LED (1.6mm x 0.8mm)

PRODUCT DESCRIPTION

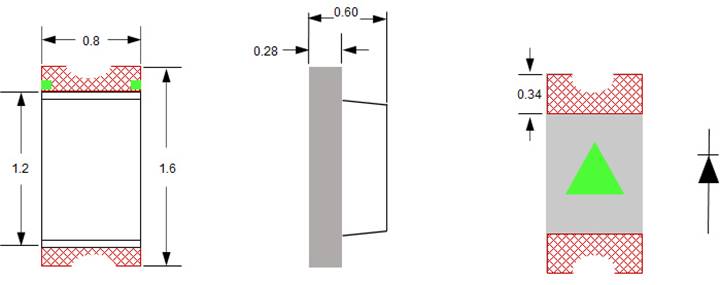

(1) 1.6mm x 0.8mm Footprint

(5) Bin Sorted By Color, Intensity & Vf

(2) RoHs Compliant Part

(6) Packaging: 4,000 per Reel

(3) SMD Assembly or Manual Soldering

(7) Ideal for All Backlighting Applications

(4) Moisture Sensitive Component







Electro-optical Characteristics (Ta = 250C)





Viewing

lD

Luminous Intensity

Vf

P/N

LED Color

Angle

Typ (nm)

Mi.n

Typ.

Max.

Typ. (V)

Max (V)

UT-692UR

Super Red




140
Degrees

660

40

60

1.7

2.4

UT-692YQ

Super Yellow

592

40

80

1.7

2.1

UT-692SQ

Super Orange

605

40

80

1.7

2.3

UT-692YQ

Lime Green

578

40

80

1.7

2.3





Absolute Maximum Rating (Ta = 250C)

Parameter

Maximum Rating

Units

DC Forward Current

30

mA

Peak Pulse Current (1)

100

mA

Power Dissipation

100

mW

Reverse Voltage (IR = 100uA)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1) Pulse Conditions of 1/10 duty and 0.1msec widths


LC LED Corporation
