LC LED UT-692RGB4D: 0605 RGB SMD LED

HIGHLIGHTS

APPLICATIONS

        1.6mm x 1.5mm RGB Common Anode

        Low Power Consumption

        Design for white color mixing

        Long Operating Life

        RoHs Compliant Part

        Backlighting

        Wearables and Portable Devices

        Status Indicator

        Medical and Industrial Instrumentation

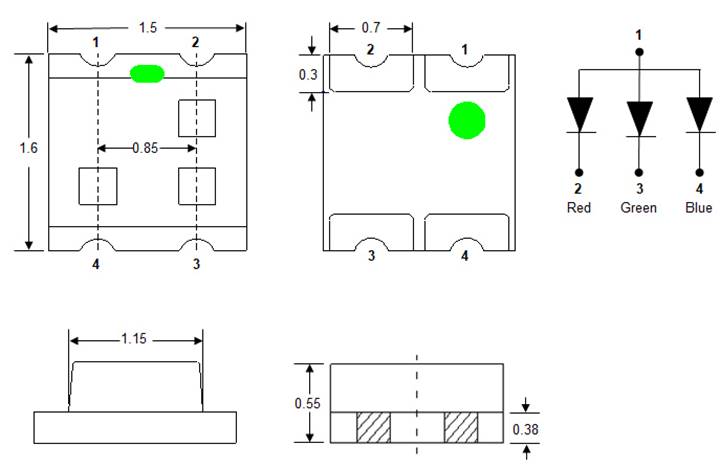

DEVICE DIMENSIONS

A close up of a map

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

GREEN

BLUE

UNITS

DC Forward Current

25

25

25

mA

Peak Pulse Forward Current (1)

90

100

100

mA

Reverse Voltage (IR = 10mA)

5

5

5

VR

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Soldering Recommendation

Reflow soldering: 260C For 5 Seconds

Hand soldering: 300C For 3 Seconds

(1) Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 20mA

1.8

2.5

V

DC Forward Voltage (Green)

VF

IF = 20mA

2.8

3.5

V

DC Forward Voltage (Blue)

VF

IF = 20mA

2.8

3.5

V

Luminous Intensity (Red)

IV

IF = 20mA

150



300

mcd

Luminous Intensity (Green)

IV

IF = 20mA

400



600

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

150



250

mcd

Viewing Angle

2q1/2

IF = 20mA

120

Deg.

Dominant Wavelength (Red)

lD

IF = 20mA

620

630

nm

Dominant Wavelength (Green)

lD

IF = 20mA

520

530

nm

Dominant Wavelength (Blue)

lD

IF = 20mA

460

470

nm

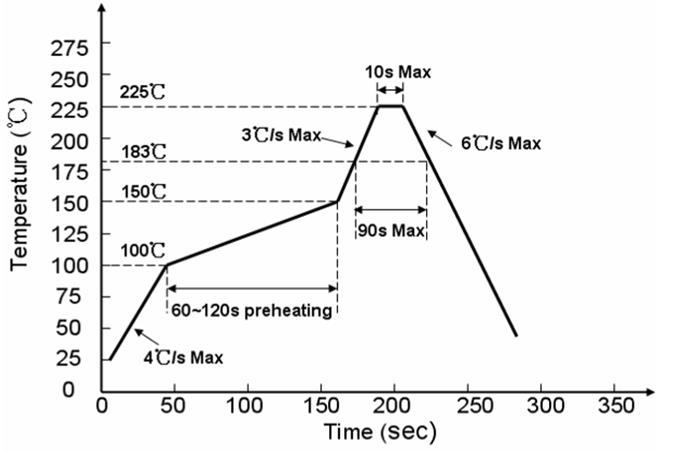

Suggest IR Reflow for Lead Solder



A close up of a map

Description automatically generated

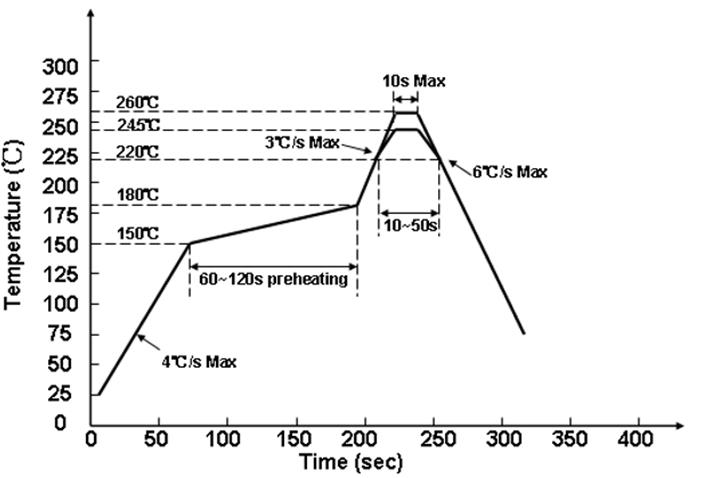

Suggest IR Reflow for Pb Free Solder



A close up of a map

Description automatically generated

(1) Recommended Soldering Temperature 245+50C. Maximum Soldering Temperature of 2600C

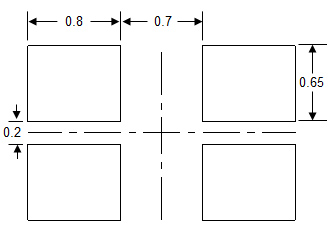

Recommended PCB Solder Pad



A screenshot of a social media post

Description automatically generated

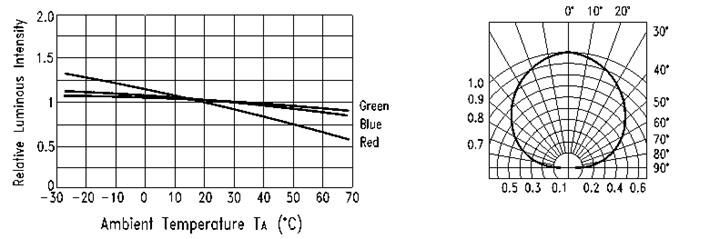

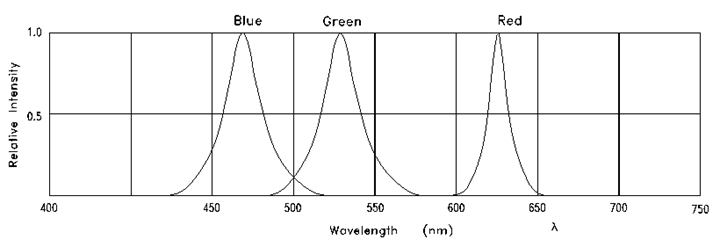

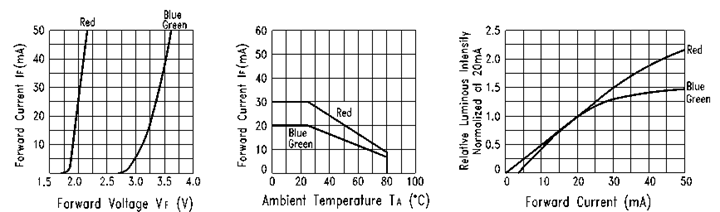

Electro-Optical Curve Characteristics





A screenshot of a cell phone

Description automatically generated



A close up of text on a white background

Description automatically generated

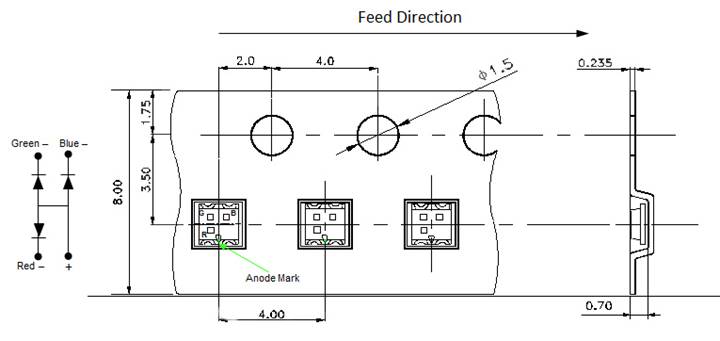

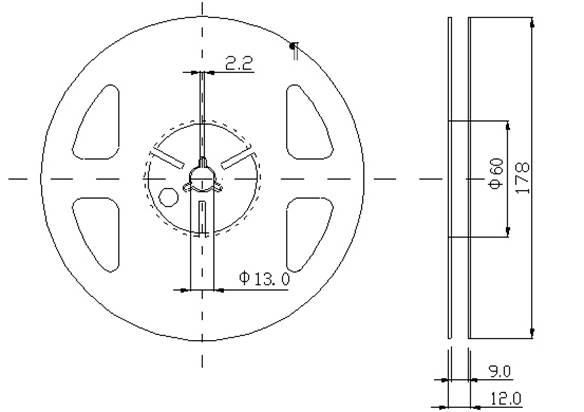

Tape and Reel Package Dimensions



A close up of a map

Description automatically generated


LC LED Corporation
