UT-652NW: Super White 1206 Chip SMD LED (3.2mm x 1.6mm)
|
PRODUCT DESCRIPTION |
|
|

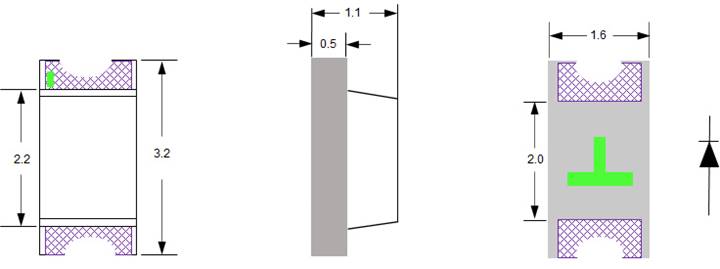

(1) 3.2m x 1.6mm Footprint |
(5) Bin Sorted By Color,
Intensity & Vf |
|
(2) RoHs Compliant Part |
(6) Packaging: 3,000 per Reel |
|
(3) SMD Assembly or Manual
Soldering |
(7) Ideal for All Backlighting
Applications |
|
(4) Moisture Sensitive Component |
|
Electro-optical
Characteristics (Ta = 250C)
|
|
|
Viewing |
lD |
Luminous Intensity |
Vf |
|||
|
P/N |
LED Color |
Angle |
Typ (nm) |
Min. |
Typ. |
Max. |
Typ. (V) |
Max (V) |
|
UT-652NW |
Super
White |
170 |
X=0.31 |
250 |
250 |
320 |
3.0 |
3.7 |
|
UT-652NB |
Super
Blue |
470 |
200 |
250 |
320 |
3.0 |
3.7 |
|
|
UT-652NG |
Green |
525 |
1,000 |
|
1,600 |
3.0 |
3.7 |
|
Absolute Maximum
Rating (Ta = 250C)
|
Parameter |
Maximum Rating |
Units |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Current (1) |
100 |
mA |
|
Power Dissipation |
100 |
mW |
|
Reverse Voltage (IR = 100uA) |
5 |
V |
|
Operating Temperature |
-25 to
+85 |
0C |
|
Storage Temperature |
-25 to
+85 |
0C |
(1) Pulse Conditions of 1/10 duty and 0.1msec widths
|
LC LED Corporation |
