UT-652NB:  Super Blue 1206 Chip SMD LED (3.2mm x 1.6mm)

PRODUCT DESCRIPTION

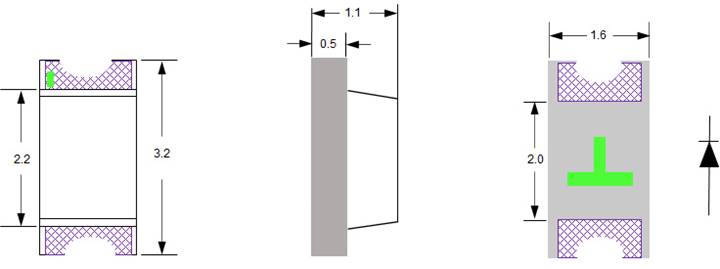

(1) 3.2m x 1.6mm Footprint

(5) Bin Sorted By Color, Intensity & Vf

(2) RoHs Compliant Part

(6) Packaging:  3,000 per Reel

(3) SMD Assembly or Manual Soldering

(7) Ideal for All Backlighting Applications

(4) Moisture Sensitive Component





Electro-optical Characteristics (Ta = 250C)





Viewing

lD

Luminous Intensity

Vf

P/N

LED Color

Angle

Typ (nm)

Min.

Typ.

Max.

Typ. (V)

Max (V)

UT-652NW

Super White

170
Degrees

X=0.31
y=0.32

250

250

320

3.0

3.7

UT-652NB

Super Blue

470

200

250

320

3.0

3.7

UT-652NG

Green

525

1,000



1,600

3.0

3.7





Absolute Maximum Rating (Ta = 250C)

Parameter

Maximum Rating

Units

DC Forward Current

30

mA

Peak Pulse Current (1)

100

mA

Power Dissipation

100

mW

Reverse Voltage (IR = 100uA)

5

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-25 to +85

0C



(1) Pulse Conditions of 1/10 duty and 0.1msec widths


LC LED Corporation
