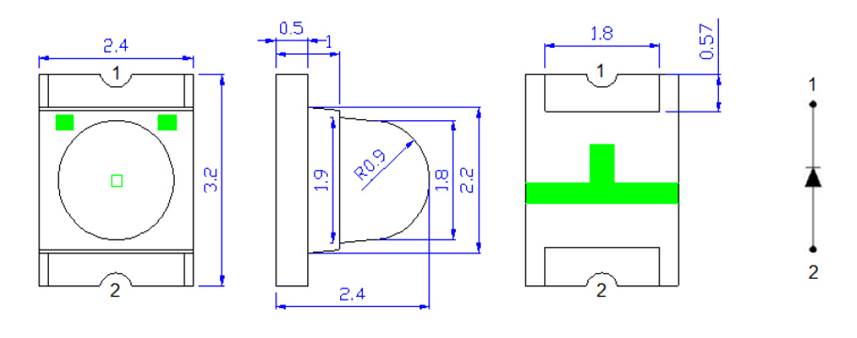

Surface Mount DOME LED With LENS



PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5)  Packaging:  2,000 per Reel

(2) SMD Assembly or Manual Soldering

(6)  Ideal for All Backlighting Applications

(3) Moisture Sensitive Component



(4) Bin Sorted By Color, Intensity & Vf







Absolute Maximum Rating (Ta = 250C)

Parameter

Maximum Rating

Units

RECOMMONDED SOLDER PAD LAYOUT

DC Forward Current

30

mA

Peak Pulse Current (1)

100

mA

Power Dissipation

120

mW

Reverse Voltage (IR = 10uA)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1) Pulse Conditions of 1/10 duty and 0.1msec widths





Electro-optical Characteristics (Ta = 250C)





Viewing

lD

Luminous Intensity

Vf

P/N

LED Color

Angle

Typ (nm)

Min.

Typ.

Max.

Typ. (V)

Max (V)

SLT-883W

Super White

120

X=0.28
y=0.32

240



410

3.0

4.0

SLT-883B

Super Blue

30

470

400



800

3.0

4.0

SLT-883G

Super Green

30

525

600



1000

3.0

4.0

SLT-886AUY

Super Yellow

30

590

400



800

1.7

2.4

SLT-886AUR

Super Red

30

630

400



800

1.7

2.4

LC LED Corporation
