SLT-873TUR:  POWER TOP RED SMD (3.5mm x 2.8mm) LED

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5)  Packaging:  2,000 per Reel

(2) SMD Assembly or Manual Soldering

(6)  Ideal for All Backlighting Applications

(3) Moisture Sensitive Component



(4) Bin Sorted By Color, Intensity & Vf

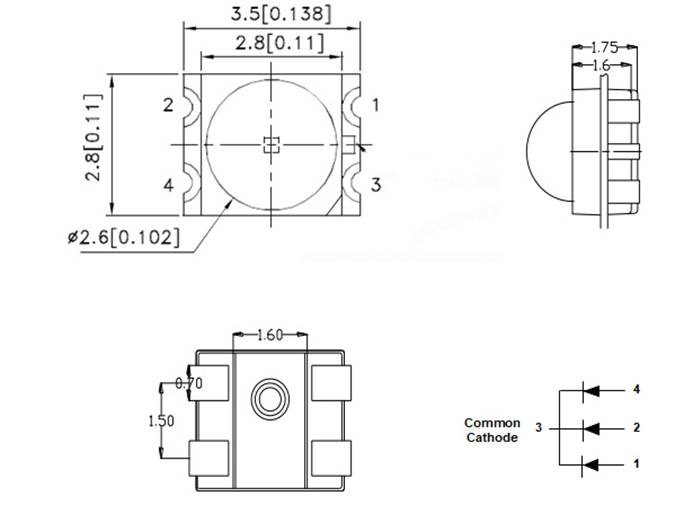

Notch:  common cathode





Electro-optical Characteristics (Ta = 250C)





Viewing

lD

Luminous Intensity

Vf

P/N

LED Color

Angle

Typ (nm)

Min.

Typ.

Max.

Typ. (V)

Max (V)

SLT-873B

Super Blue

140
Degrees

470

500



800

3.0

3.7

SLT-873G

Super Green

525

2,000



2,500

3.0

3.7

SLT-873W

Super White

X=0.31
y=0.30

1,500



2,000

3.0

3.7

SLT-873TUR

Super Red

630

1,600



2,200

1.7

2.5

SLT-873TUY

Super Amber

590

1,000



1,500

1.7

2.5





Absolute Maximum Rating (Ta = 250C)

Parameter

Maximum Rating

Units

DC Forward Current

30

mA

Peak Pulse Current (1)

100

mA

Power Dissipation

100

mW

Reverse Voltage (IR = 10uA)

5

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-25 to +85

0C

(1) Pulse Conditions of 1/10 duty and 0.1msec widths

LC LED Corporation
