SLT-773W: POWER TOP WHITE SMD (3.5mm x 2.8mm) LED

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(5) Packaging: 2,000 per Reel

(2) SMD Assembly or Manual Soldering

(6) Ideal for All Backlighting Applications

(3) Moisture Sensitive Component



(4) Bin Sorted By Color, Intensity & Vf

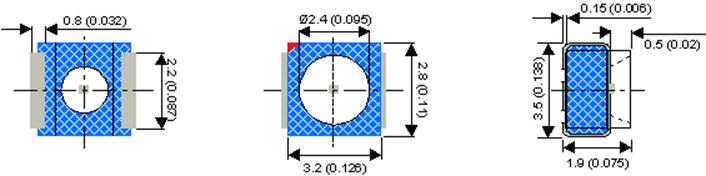

        Description: slt776a

Notch: common cathode



Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Current (1)

100

mA

Power Dissipation

120

mW

Reverse Voltage (IR = 10uA)

5

V

Operating Temperature

-30 to +80

0C

Storage Temperature

-40 to +85

0C

(1) Max. pulse width < 10ms and Duty ratio 1/10; For long life, DC current of 10mA to 20mA is recommended



Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

3.0



3.8

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA







Viewing Angle

2q1/2

IF = 20mA



140



Deg.

Luminous Intensity

IV

IF = 20mA



600



mcd





INTENSITY BIN lv (mcd)





Bin
Code

Min.
(mcd)

Max.
(mcd)



Color Bin
Wavelength (nm)

Voltage
Vf (V)

Q
R
S

400
500
630

630
800
1250



D

X = 0.25-0.27
y= 0.26-0.31

L
M
N
O

3.2V-3.3V
3.3V-3.5V
3.4V-3.5V
3.5V-3.6V



E

X = 0.25-0.27
y= 0.26-0.31



Description: C:\images\blank.gifDescription: C:\images\red.gif

LC LED Corporation
