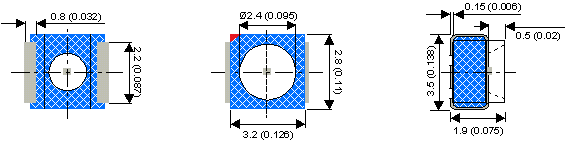

SLT-773B: POWER TOP BLUE SMD (3.5mm x 2.85mm) LED
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant Part |
(5) Packaging:
2,000 per Reel |
|
(2) SMD Assembly or Manual
Soldering |
(6) Ideal for All Backlighting Applications |
|
(3) Moisture Sensitive Component |
|
|
(4) Bin Sorted By Color,
Intensity & Vf |
|
Notch:
common cathode
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Current (1) |
100 |
mA |
|
Power Dissipation |
80 |
mW |
|
Reverse Voltage (IR = 10uA) |
5 |
V |
|
Operating Temperature |
-20 to
+80 |
0C |
|
Storage Temperature |
-20 to
+80 |
0C |
(1) Max. pulse width <
10ms and Duty ratio 1/10; For long life, DC current of 10mA to 20mA is
recommended
Electro-optical Characteristics (Ta
= 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF = 20mA |
3.0 |
|
3.8 |
V |
|
Reverse Voltage |
VR |
IR = 10mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF = 20mA |
460 |
465 |
470 |
|
|
Viewing Angle |
2q1/2 |
IF = 20mA |
|
140 |
|
Deg. |
|
Luminous Intensity |
IV |
IF = 20mA |
|
125 |
|
mcd |
|
INTENSITY BIN lv (mcd) |
|
|||||||
|
Bin |
Min. |
Max. |
|
Color Bin |
|
Vf (Bin) |
||
|
J |
80 |
125 |
|
G |
465-467 |
|
K |
3.1-3.2 |
|
K |
100 |
160 |
|
H |
468-470 |
|
L |
3.2-3.3 |
|
L |
125 |
200 |
|
I |
470-472 |
|
M |
3.3-3.4 |
|
M |
160 |
250 |
|
J |
473-475 |
|
N |
3.4-3.5 |
|
