LC LED-SLT-573UYG: Reverse Mount Lime Green SMD LED
LC LED Reverse Mount Top SMD Lime Green (120 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant
Part |
(4) Indicator and
Panel Lighting |
|
(2) SMD
Assembly or Manual Soldering |
(5) Ideal for Backlighting
Applications |
|
(3) Moisture
Sensitive Component |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
80 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-30
to +85 |
0C |
|
Storage Temperature |
-30
to +95 |
0C |
(1) Pulse width of 1/10 duty and 10msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage |
VF |
IF
= 20mA |
1.8 |
|
2.3 |
V |
|
Reverse
Voltage |
VR |
IR
= 10mA |
|
|
5 |
V |
|
Dominant
Wavelength |
lD |
IF
= 20mA |
568 |
|
573 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous
Intensity |
IV |
IF
= 20mA |
200 |
400 |
mcd |

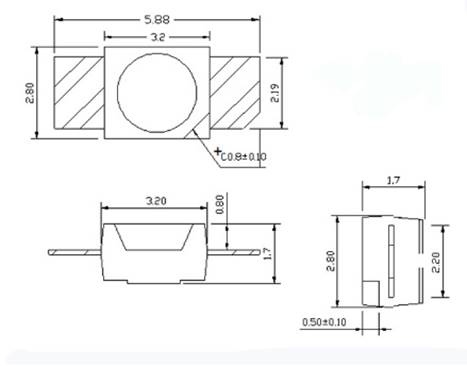

DEVICE DIAGRAM
|
LC LED Corporation |
