12V LED 5mm White Resistor
Lamps
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant Part |
(4) Moisture & UV Resistance
Epoxy |
|
(2)
Built-in Internal Resistor Chip |
(5) Rugged design suitable for both indoor
& outdoor use |
|
(3)
Design for 12VDC Operation |
|
Electro-optical Characteristics (Ta
= 250C)
|
Part |
Color |
Viewing |
Dominant |
Forward Voltage |
Luminous Intensity |
||
|
Number |
|
Angle |
Wavelength |
Min. |
Typ. |
Min. |
Typ. |
|
R500TW4D |
Super White |
30 |
5500K |
9 |
12 |
1,800 |
2,500 |
|
R500TB4D |
Super Blue |
30 |
465 |
9 |
12 |
1,800 |
2,000 |
|
R500TG4D |
Super Green |
30 |
525 |
9 |
12 |
1,800 |
2,500 |
|
R500JPF4D |
Super Red |
30 |
630 |
9 |
12 |
3,500 |
3,000 |
|
R500JPT4D |
Super Amber |
30 |
590 |
9 |
12 |
2,800 |
3,000 |
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Operating Temperature |
-30 to
+85 |
0C |
|
Storage Temperature |
-40 to
+100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse conditions
of 1/10 duty and 0.1msec width

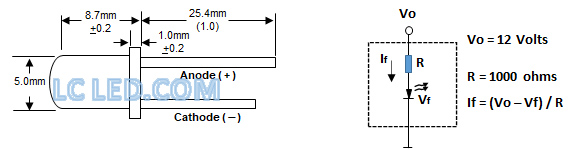

DEVICE DRAWING
|
LC LED Corporation |
