R300TB4D: 12V 3mm Blue LED Lamp





     Design for 12VDC Operation

        High Intensity LED Die Suitable for Outdoor Uses

     No External Wiring or Resistor

        Max. Current Load of 30mA

     Incorporates Built-In Internal Resistor Chip

        RoHs Compliant Part





Electro-optical Characteristics (Ta = 250C)

Part

Color

Viewing

Dominant

Forward Voltage (1)

Luminous Intensity

Number



Angle

Wavelength
(nm)

Min.

Typ.

Min.
(mcd)

Max.
(mcd)

R300TW4D

Super White

30

5500K

9

12

4,300

6,500

R300TB4D

Super Blue

30

465

9

12

3,100

4,500

R300TG4D

Super Green

30

525

9

12

3,800

6,500

R300JPF4D

Super Red

30

630

9

12

2,500

4,000

R300JPT4D

Super Amber

30

590

9

12

2,500

4,000

(1) Max. Current Load of 30mA, excess current will burn-out the led lamp





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Max. DC Forward Voltage

12

V

Max. DC Forward Current

30

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

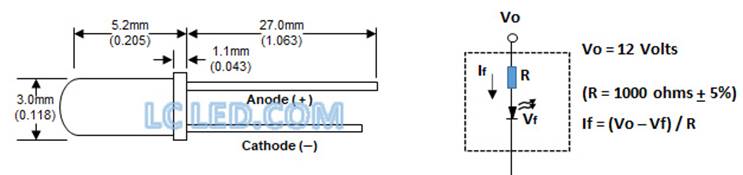

DEVICE DRAWING




LC LED Corporation
