LC LED N300UV4D-380P: 0.16W 3mm UV 380nm LED

HIGHLIGHTS

APPLICATIONS

        High Power UV-A LED

        Wide Range of Wavelengths (365nm to 430nm)

        High Power Dome Package

        Low Thermal Resistance

        RoHS Compliant Part

        Purification and Sterilization

        Curing for Ink, Adhesive and Coating

        Inspection and Detection

        Medical and Industrial Instrumentation

        Black Light





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current (1)

40

mA

Peak Pulse Forward Current (2)

150

mA

Avg. Forward Current (Pulse Operation)

40

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1) Max. DC current for 2-die in parallel

(2) Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. pulse current for 2-die in parallel





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 30mA

3.0

3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Peak Wavelength

lD

IF = 30mA

380

385



Viewing Angle

2q1/2

IF = 30mA



30



Deg.

Radiant Intensity

IV

IF = 30mA

82

95

mW

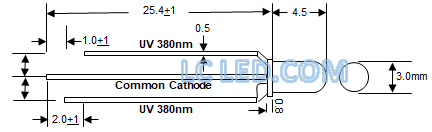

DEVICE DRAWING



A screenshot of a cell phone

Description automatically generated
