LCT-3632TW1CG: 7-Segment Three
Digit White 0.36 Inch (9.14mm) LED Display
|
PRODUCT DESCRIPTION |
|
|
(1) Three Digit 0.36 Inch
(9.14mm) Height |
(5) Gray color background |
|
(2) Low current operation |
(6) Common Cathode |
|
(3) Excellent color and font
characteristics |
(7) RoHs Compliant Part |
|
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating (Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Power Dissipation per Segment |
40 |
mW |
|
DC Forward Current per Segment |
20 |
mA |
|
Reverse Voltage per Segment (IR = 10mA) |
5 |
V |
|
Peak Pulse Forward Current per Segment (1) |
100 |
mA |
|
Operating Temperature |
-40 to
+80 |
0C |
|
Storage Temperature |
-40 to
+100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
(2) Solder
Temperature of 1/16” Below Seating Plane for 5 Seconds at 2600C
Electro-optical Characteristics (Ta
= 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage per Segment |
VF |
IF = 20mA |
3.3 |
|
3.8 |
V |
|
Reverse Current per Segment |
IR |
VR = 5V |
|
|
10 |
mA |
|
Chromaticity Coordinate |
x |
IF = 20mA |
|
0.29 |
|
|
|
y |
IF = 20mA |
|
0.30 |
|
|
|
|
Luminous Intensity |
IV |
IF = 20mA |
60 |
75 |
|
mcd |
|
Luminous Intensity Matching Ratio |
Iv-m |
IF = 20mA |
2:1 |
|||

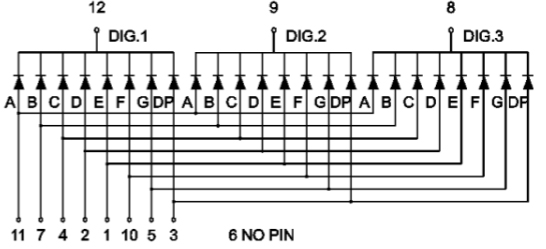

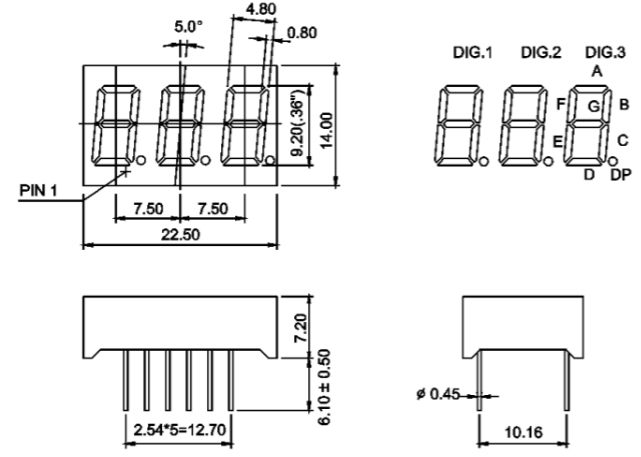

DEVICE
DIAGRAM
|
LC LED Corporation |
