LCSM-4014TUR2C: SMD Alpha-Numeric
Red 0.4 Inch (10.2mm) LED Display (Gray Background) Cathode
PRODUCT DESCRIPTION |
|
(1) SMD
Alpha-Numeric 0.4 Inch (10.2mm) Height |
(5) Gray Color Background |
(2) Low current
operation |
(6) Common Cathode |
(3) Excellent color
and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, Blue, Red, Yellow (Amber) &
Green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
|
DC Forward
Current Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Peak Current
Per Segment (1) |
100 |
100 |
100 |
100 |
100 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Reverse
Voltage |
5 |
V |
||||
Operating
Temperature |
-40
to +85 |
0C |
||||
Storage
Temperature |
-40
to +85 |
0C |
(1) Pulse conditions of 1/10 duty cycle @ 1KHz
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCSM-4014TW2C |
InGaN |
5,500K |
10 |
3.0 |
3.3 |
225
mcd |
LCCS-4014TB2C |
InGaN |
465 |
10 |
3.0 |
3.3 |
160
mcd |
LCSM-4014TG2C |
InGaN |
525 |
10 |
3.0 |
3.3 |
285
mcd |
LCSM-4014TUR2C |
AlInGaP |
630 |
10 |
1.8 |
2.3 |
128
mcd |
LCSM-4014YG2C |
AlInGaP |
571 |
10 |
1.7 |
2.1 |
90
mcd |
LCSM-4014UY2C |
AlInGaP |
590 |
10 |
1.7 |
2.1 |
95
mcd |

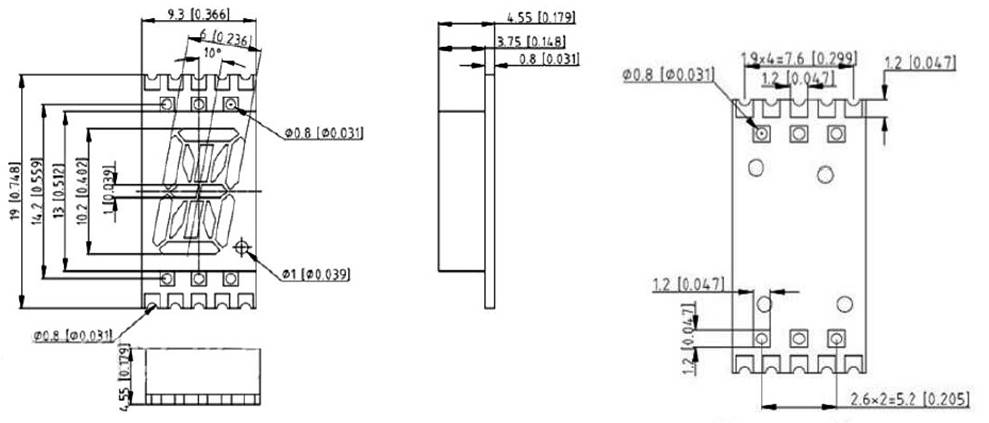

MECHNICAL
DIMENSIONS

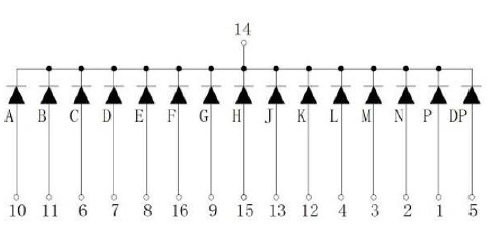

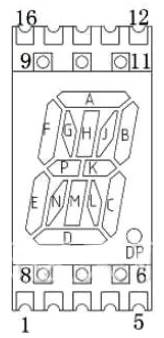

INTERNAL
CIRCUIT LAYOUT
LC LED Corporation |
