LCS-8012YG1C: 7-Segment Green Single Digit 0.80 Inch (20.32mm) LED Cathode

PRODUCT DESCRIPTION
(1) 0.80 Inch (20.32mm) Digit Height	(5) Low current operation
(2) Common Cathode	(6) Excellent color and font characteristics
(3) Black Background	(7) RoHs Compliant Part
(4) Color: Green	(8) Custom configuration available

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	WHITE	UNITS
DC Forward Current Per Segment	20	mA
Peak Current Per Segment (1)	25	mA
Avg. Forward Current (Pulse Operation) Per Segment	25	mA
Reverse Voltage (2)	5	V
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Reverse biasing is not recommended, will cause damage to the leds

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 10mA)
LCS-8012YG1C	AlInGaP Green	571	10	1.7	2.2	70,000 ucd

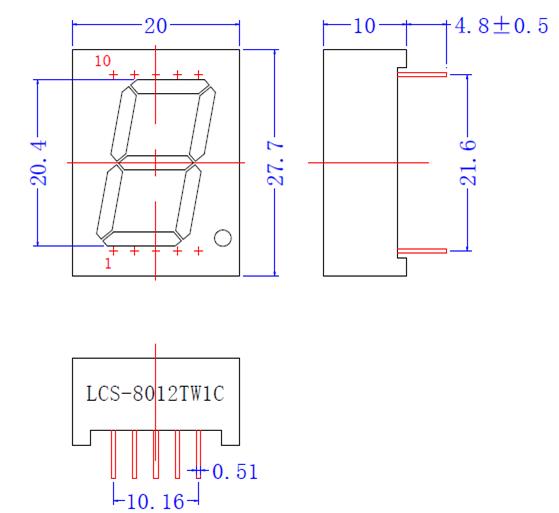

DEVICE DIAGRAM

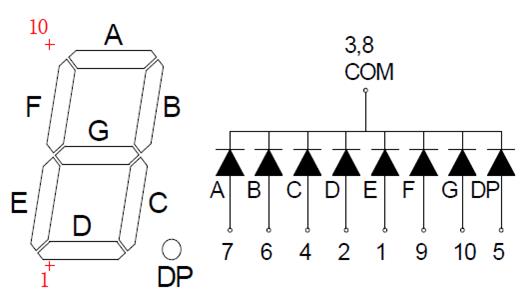

PIN NO.		PIN NO.
1	Anode E	6	Anode B
2	Anode D	7	Anode A
3	Common Cathode DIG.	8	Common Cathode DIG. 2
4	Anode C	9	Anode F
5	Anode DP	10	Anode G

LC LED Corporation
