LCS-8012TUR2C: 7-Segment Red Single Digit 0.80 Inch (20.32mm) LED Cathode

PRODUCT DESCRIPTION



(1)  0.80 Inch (20.32mm) Digit Height

(5)  Low current operation

(2)  Common Cathode

(6)  Excellent color and font characteristics

(3)  Gray Background

(7)  RoHs Compliant Part

(4) Color:  Red

(8)  Custom configuration available





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-8012TUR2C

AlInGaP
Red

625

10

1.8

2.1

80,000 ucd

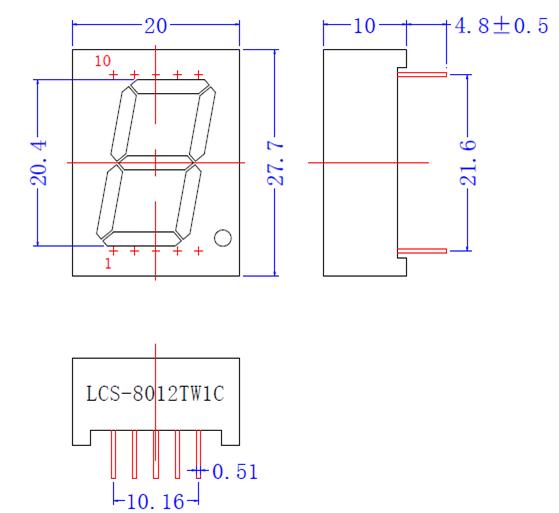

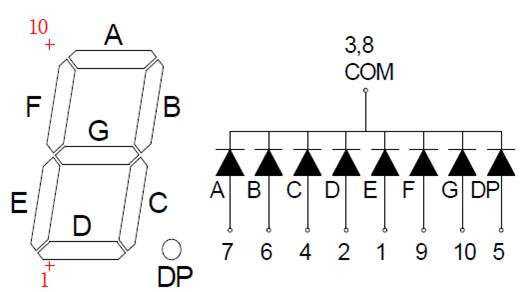

DEVICE DIAGRAM

PIN NO.



PIN NO.



1

Anode E

6

Anode B

2

Anode D

7

Anode A

3

Common Cathode DIG.

8

Common Cathode DIG. 2

4

Anode C

9

Anode F

5

Anode DP

10

Anode G



A close up of a map

Description automatically generated
