LCS-568UV395B: 5W Power UV 395nm LED 20mm Heat Sink (140 Degree)

HIGHLIGHTS

APPLICATIONS

·        High Power UV-A LED

·        Wide Range of Wavelengths (365nm to 430nm)

·        High Power Dome Package

·        Low Thermal Resistance

·        RoHs Compliant Part

·        Purification and Sterilization

·        Curing for Ink, Adhesive and Coating

·        Inspection and Detection

·        Medical and Industrial Instrumentation

·        Black Light



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power

5

W

DC Forward Current

1400

mA

Peak Pulse Forward Current (1)

2000

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

150

0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1)  Pulse conditions of 1/10 duty and 0.1msec width

(2)  This device has two LED die in parallel





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 1400mA

3.4

3.8

V

Radiant Intensity

IV

IF = 1400mA

1,000



1,200

mW

Viewing Angle

2q1/2

IF = 1400mA

140

Deg.

Peak Wavelength

lD

IF = 1400mA

395

400

nm

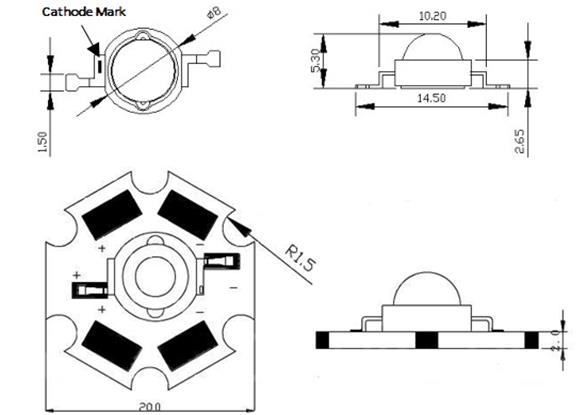

PACKAGE DIMENSIONS



A close up of text on a black background

Description automatically generated



Description: Description: Description: C:\images\red.gif

LC LED Corporation
