LCS-5617TGUR11: Bicolor 7-Segment
Super Green & Super Red Single Digit 0.56 Inch (14.2mm) LED Anode
PRODUCT DESCRIPTION |
|
(1) 0.56 Inch (14.2mm) Digit Height |
(5) Low current operation |
(2) Common Anode |
(6) Milky Diffused Segment |
(3) Black Background |
(7) Excellent color mixing characteristics |
(4) Bi-Color:
High Bright Green & Red LED Die |
(8) RoHs Compliant Part |
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
WHITE |
UNITS |
DC Forward
Current Per Segment |
20 |
mA |
Peak Current
Per Segment (1) |
25 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
25 |
mA |
Reverse
Voltage (2) |
5 |
V |
Operating
Temperature |
-30
to +85 |
0C |
Storage
Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
(2)
Reverse biasing is not recommended, will cause damage to the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-5617TGUR11 |
AlInGaP |
625 |
10 |
1.8
|
2.3 |
80,000
ucd |
InGaN |
525 |
10 |
3.0 |
3.5 |
150,000
ucd |

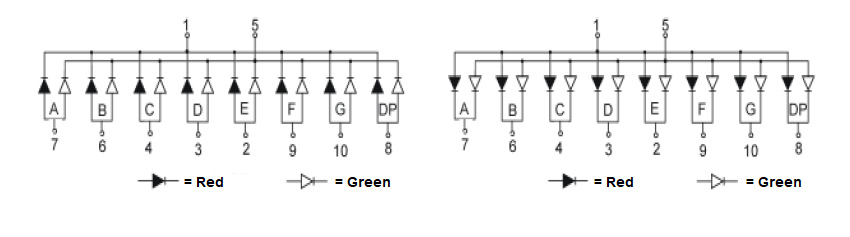

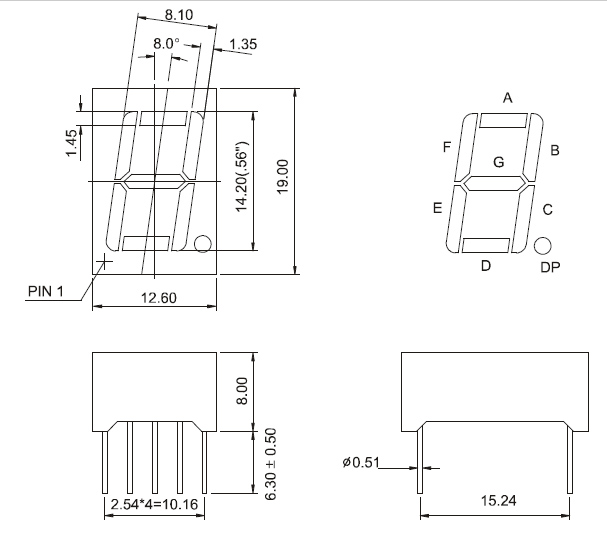

DEVICE
DIAGRAM
LC LED Corporation |
