LCS-5612TW1C:  7-Segment Single Digit 0.56 Inch (14.20mm)

PRODUCT DESCRIPTION



(1) 0.56 Inch (14.20mm) Digit Height

(5)  Gray or black color background

(2) Low current operation

(6)  Common cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

25

30

20

mA

Peak Current Per Segment (1)

70

50

50

25

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

25

25

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-5612TW1C

InGaN
White

5,500K

10

3.3

3.8

75,000 ucd

LCS-5612TB1C

InGaN
Blue

468

10

3.3

3.8

58,000 ucd

LCS-5612AUR1C

AlGaAs
Red

660

10

1.8

2.3

42,000 ucd

LCS-5612YG1C

GaP
Green

568

10

1.9

2.3

38,000 ucd

LCS-5612UY1C

AlInGaP
Yellow

590

10

1.8

2.3

42,000 ucd





PIN NO.







1

Anode E

6

Anode B

2

Anode D

7

Anode A

3

Common Cathode 1

8

Common Cathode 2

4

Anode C

9

Anode F

5

Anode DP

10

Anode G

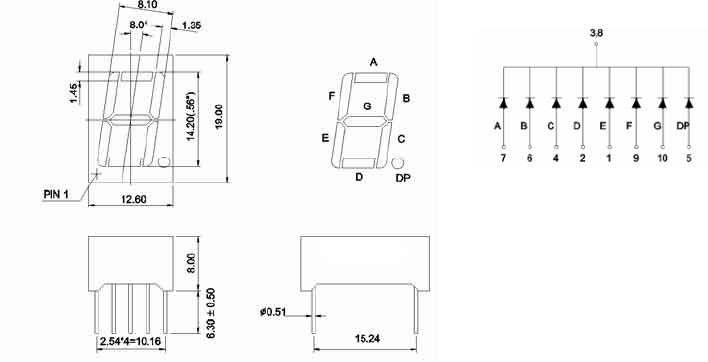

DEVICE DIAGRAM
