LCS-5612TP11:  7-Segment Single Purple Digit 0.56 Inch (14.20mm)

PRODUCT DESCRIPTION



(1) 0.56 Inch (14.20mm) Digit Height

(5)  Black color background

(2) Low current operation

(6)  Common Anode (Cathode Available)

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors: Purple, white, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

25

30

20

mA

Peak Current Per Segment (1)

70

50

50

25

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

25

25

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-5612TW11

InGaN
White

5,500K

10

3.3

3.8

75,000 ucd

LCS-5612TB11

InGaN
Blue

468

10

3.3

3.8

65,000 ucd

LCS-5612TP11

InGaN
Purple

X =0.34
y = 0.28

10

3.3

3.8

65,000 ucd

LCS-5612AUR11

AIInGaP
Red

625

10

1.8

2.3

55,000 ucd

LCS-5612YG11

AIInGaP
Green

571

10

1.9

2.3

45,000 ucd

LCS-5612UY11

AlInGaP
Yellow

590

10

1.8

2.3

48,000 ucd

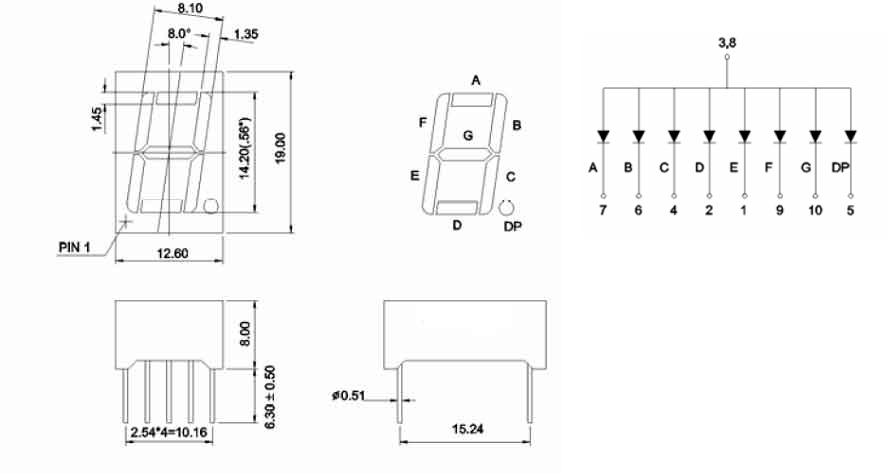

DEVICE DIAGRAM & PIN LAYOUT

PIN NO.







1

Cathode E

6

Cathode B

2

Cathode D

7

Cathode A

3

Common Anode DIG. 1

8

Common Anode DIG. 2

4

Cathode C

9

Cathode F

5

Cathode DP

10

Cathode G
