7-Segment Single Digit 0.56 Inch (14.20mm)

PRODUCT DESCRIPTION



(1) 0.56 Inch (14.20mm) Digit Height

(5)  Gray or black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green





Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

25

30

20

mA

Peak Current Per Segment (1)

70

50

50

25

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

25

25

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-5612AUR11

AlGaAs
Red

660

10

1.8

2.3

53,000 ucd

LCS-5612TB11

InGaN
Blue

468

10

3.3

4.0

65,000 ucd

LCS-5612YG11

GaP
Green

568

10

1.9

2.3

48,000 ucd

LCS-5612UY11

AlInGaP
Amber

590

10

1.8

2.3

48,000 ucd

LCS-5612TW11

InGaN
White

5,500K

10

3.3

4.0

71,000 ucd





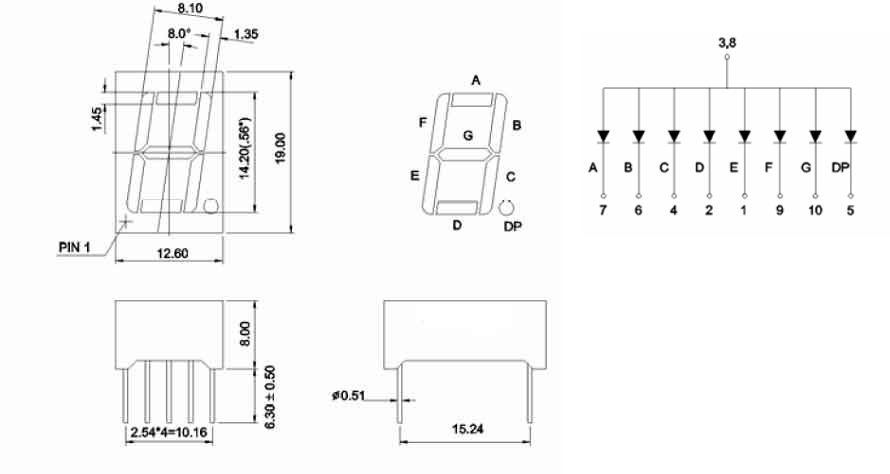

DEVICE DIAGRAM & PIN LAYOUT

PIN NO.







1

Cathode E

6

Cathode B

2

Cathode D

7

Cathode A

3

Common Anode DIG. 1

8

Common Anode DIG. 2

4

Cathode C

9

Cathode F

5

Cathode DP

10

Cathode G
