LCS-4032TW11:  7-Segment Single Digit 0.40 Inch (10.16mm) LED Display

PRODUCT DESCRIPTION



(1) 0.40 Inch (10.16mm) Digit Height

(5)  Black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Color:  White

(8)  Custom configuration available





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-4032TW11

InGaN
White

5,500K

10

3.3

4.0

20,000 ucd

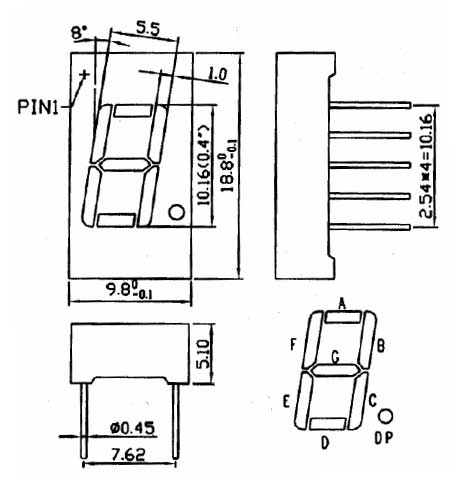

DEVICE DIAGRAM

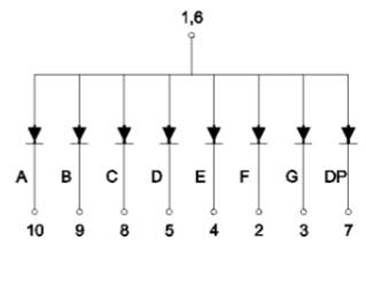

PIN NO.







1

Common Anode DIG. 1

6

Common Anode DIG. 2

2

Cathode F

7

Cathode DP

3

Cathode G

8

Cathode C

4

Cathode E

9

Cathode B

5

Cathode D

10

Cathode A



































LC LED Corporation
