LCS-3612TW1C: White Single
Digit 0.36 Inch (7.5mmx14.0mm) Cathode
PRODUCT DESCRIPTION |
|
(1) 0.36 Inch
(9.14mm) Digit Height |
(5) Gray or black color background |
(2) Low current
operation |
(6) Common Cathode |
(3) Excellent
color and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum
Rating (Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
UNITS |
DC Forward
Current Per Segment |
30 |
30 |
25 |
30 |
20 |
mA |
Peak
Current Per Segment (1) |
70 |
50 |
50 |
25 |
25 |
mA |
Avg.
Forward Current (Pulse Operation) Per Segment |
30 |
30 |
25 |
25 |
25 |
mA |
Derating Linear
From 250C Per Segment |
0.3 |
mA/0C |
||||
Reverse
Voltage (2) |
3 |
V |
||||
Operating
Temperature |
-25
to +85 |
0C |
||||
Storage
Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
(2)
Reverse biasing of the dot matrix is not recommend, will cause damage to
the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-3632AUR1C |
AlGaAs |
660 |
10 |
1.8 |
2.3 |
8,000
ucd |
LCS-3632TB1C |
InGaN |
468 |
10 |
3.3 |
4.0 |
20,000
ucd |
LCS-3632YG1C |
GaP |
568 |
10 |
1.9 |
2.3 |
8,000
ucd |
LCS-3632UY1C |
AlInGaP |
590 |
10 |
1.8 |
2.3 |
12,000
ucd |
LCS-3612TW1C |
InGaN |
5,500K |
10 |
3.3 |
4.0 |
20,000
ucd |
PIN
MAPPING TABLE
PIN NO. |
|
|
|
1 |
Common Cathode PIN |
6 |
Common Cathode PIN |
2 |
Anode F |
7 |
Anode DP |
3 |
Anode G |
8 |
Anode C |
4 |
Anode E |
9 |
Anode B |
5 |
Anode D |
10 |
Anode A |

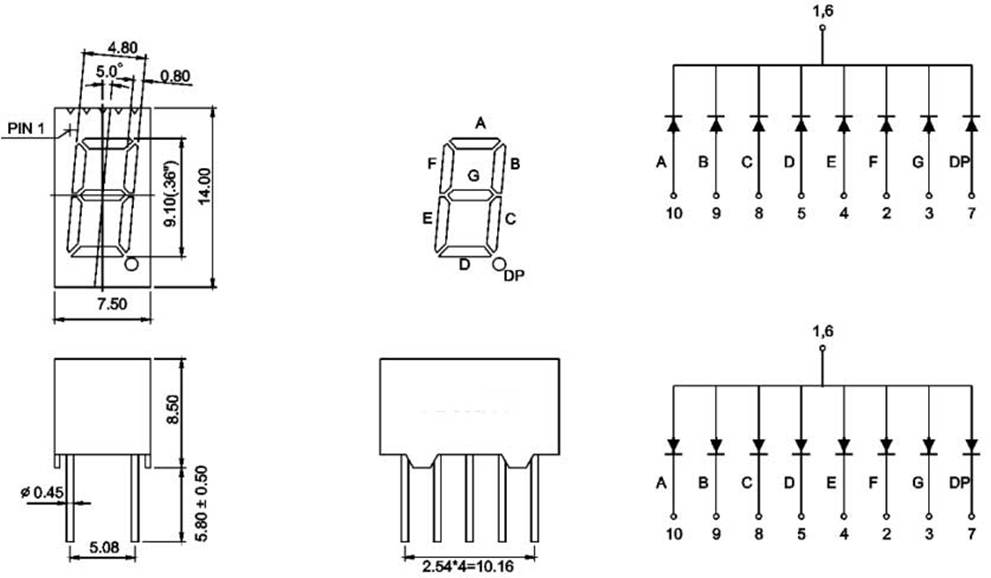

DEVICE
DIAGRAM
LC LED Corporation |
