LCS-23012UY1C: 7-Segment
Single Digit Yellow 2.3 Inch (57mm) Cathode LED
PRODUCT DESCRIPTION |
|
(1) 2.3 Inch (57mm)
Digit Height |
(5) Black color background |
(2) Low current
operation |
(6) Common Cathode |
(3) Excellent color
and font characteristics |
(7) RoHS Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
UNITS |
DC Forward
Current Per Segment |
30 |
30 |
25 |
30 |
20 |
mA |
Peak Current
Per Segment |
70 |
50 |
50 |
25 |
25 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
30 |
30 |
25 |
25 |
25 |
mA |
Derating
Linear From 250C Per Segment |
0.3 |
mA/0C |
||||
Reverse
Voltage |
3 |
V |
||||
Operating
Temperature |
-25
to +85 |
0C |
||||
Storage Temperature |
-30
to +85 |
0C |
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-23012TUR1C |
AlInGaP |
630 |
10 |
6.8 |
8.0 |
75,000
ucd |
LCS-23012TB1C |
InGaN |
468 |
10 |
13.25 |
14.0 |
90,000
ucd |
LCS-23012YG1C |
AlInGaP |
568 |
10 |
6.8 |
8.0 |
75,000
ucd |
LCS-23012UY1C |
AlInGaP |
590 |
10 |
6.8 |
8.0 |
75,000
ucd |
LCS-23012TW1C |
InGaN |
5,500K |
10 |
13.25) |
14.0 |
90,000
ucd |
PIN MAPPING TABLE
PIN NO. |
|
PIN NO. |
|
1 |
Common Cathode DIG. 1 |
6 |
Anode B |
2 |
Anode E |
7 |
Anode A |
3 |
Anode D |
8 |
Anode DP |
4 |
Anode C |
9 |
Anode F |
5 |
Common Cathode DIG. 2 |
10 |
Anode G |
(1) Anode DP (PIN #8) Vf = 1.8V for red, yellow
and green and Anode DP (PIN #8) Vf = 3.0V for blue and white

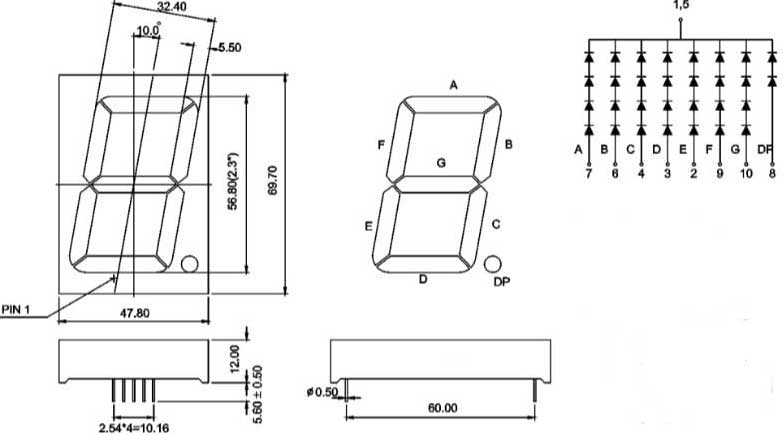

DEVICE DIAGRAM
LC LED Corporation |
