7-Segment Single Digit 2.3 Inch (57.0mm)

PRODUCT DESCRIPTION



(1) 2.3 Inch (56.80mm) Digit Height

(5)  Gray or black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

25

30

20

mA

Peak Current Per Segment (1)

70

50

50

25

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

25

25

25

mA

Derating Linear From 250C Per Segment

0.3

mA/0C

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-23012TUR11

AlInGaP
Red

630

10

6.8 (1)

8.0

75,000 ucd

LCS-23012TB11

InGaN
Blue

468

10

13.25 (2)

14.0

90,000 ucd

LCS-23012YG11

AlInGaP
Green

568

10

6.8 (1)

8.0

75,000 ucd

LCS-23012UY11

AlInGaP
Amber

590

10

6.8 (1)

8.0

75,000 ucd

LCS-23012TW11

InGaN
White

5,500K

10

13.25 (2)

14.0

90,000 ucd

(1)     Cathode DP Vf = 1.8V ONLY uses one led chip for red, yellow and green color.

(2)     Cathode DP Vf = 3.3V ONLY uses one led chip for blue and white color.

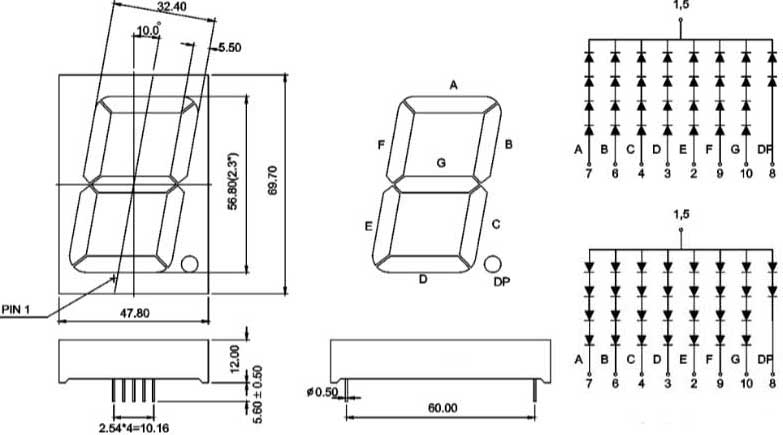

DEVICE DIAGRAM

PIN NO.



PIN NO.



1

Common Anode DIG. 1

6

Cathode B

2

Cathode E

7

Cathode A

3

Cathode D

8

Cathode DP

4

Cathode C

9

Cathode F

5

Common Anode DIG. 2

10

Cathode G

(1)  Cathode DP Vf = 1.8V for red, yellow and green and Vf = 3.3V for blue.
