LCS-10018TGUR1C: Bicolor 7-Segment
Super Green & Super Red Single Digit 1 Inch (20.4mm) LED Cathode
PRODUCT DESCRIPTION |
|
(1) 1 Inch (25.4mm) Digit Height |
(5) Low current operation |
(2) Common Cathode |
(6) Milky Diffused Segment |
(3) Black Background |
(7) Excellent color mixing characteristics |
(4) Bi-Color:
High Bright Green & Red LED Die |
(8) RoHs Compliant Part |
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
WHITE |
UNITS |
DC Forward
Current Per Segment |
20 |
mA |
Peak Current
Per Segment (1) |
25 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
25 |
mA |
Reverse
Voltage (2) |
5 |
V |
Operating
Temperature |
-30
to +85 |
0C |
Storage
Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
(2)
Reverse biasing is not recommended, will cause damage to the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-10018TGUR1C |
AlInGaP |
625 |
10 |
3.6 |
4.6 |
97,000
ucd |
InGaN |
525 |
10 |
6.0 |
7.0 |
205,000
ucd |
(1) DP Vf = 1.8V ONLY for red, yellow, and
green color (uses one led chip)
(2) DP Vf = 3.3V ONLY
for blue and white color (uses one led chip)

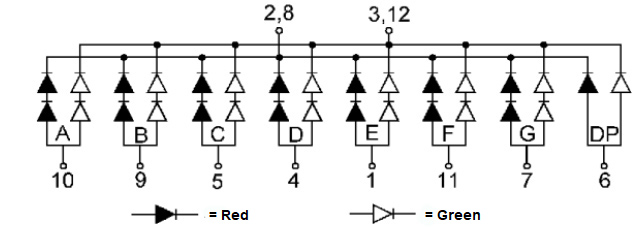

DEVICE
DIAGRAM
LC LED Corporation |
