LCS-10012TW1C: 7-Segment White 1.0 Inch (25.40mm) LED Cathode

PRODUCT DESCRIPTION



(1) 1.0 Inch (25.40mm) Digit Height

(5)  Black Color Background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

25

25

25

25

mA

Reverse Voltage (2)

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage





Electro-optical Characteristics (Ta = 250C)







PART NUMBER


DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCS-10012TW1C

InGaN
White

5,500K

10

3.0

3.6

100 mcd

LCS-10012TB1C

InGaN
Blue

468

10

3.0

3.6

85 mcd

LCS-10012TUR1C

AlInGaP
Red

630

10

1.8

2.3

80 mcd

LCS-10012YG1C

AlInGaP
Green

571

10

1.8

2.1

75 mcd

LCS-10012UY1C

AlInGaP
Yellow

590

10

1.8

2.1

75 mcd

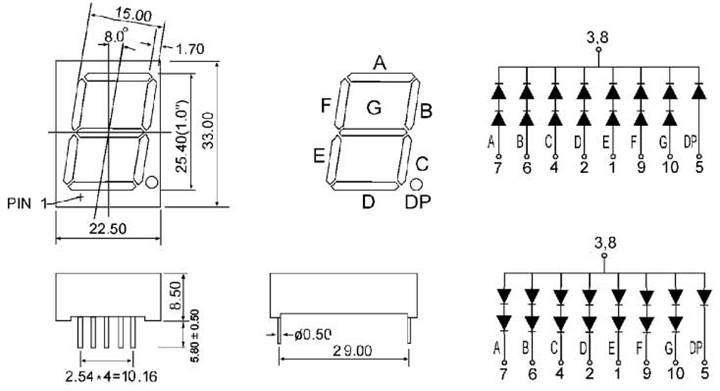

MECHNICAL DIMENSIONS & INTERNAL CIRCUIT LAYOUT










LC LED Corporation
